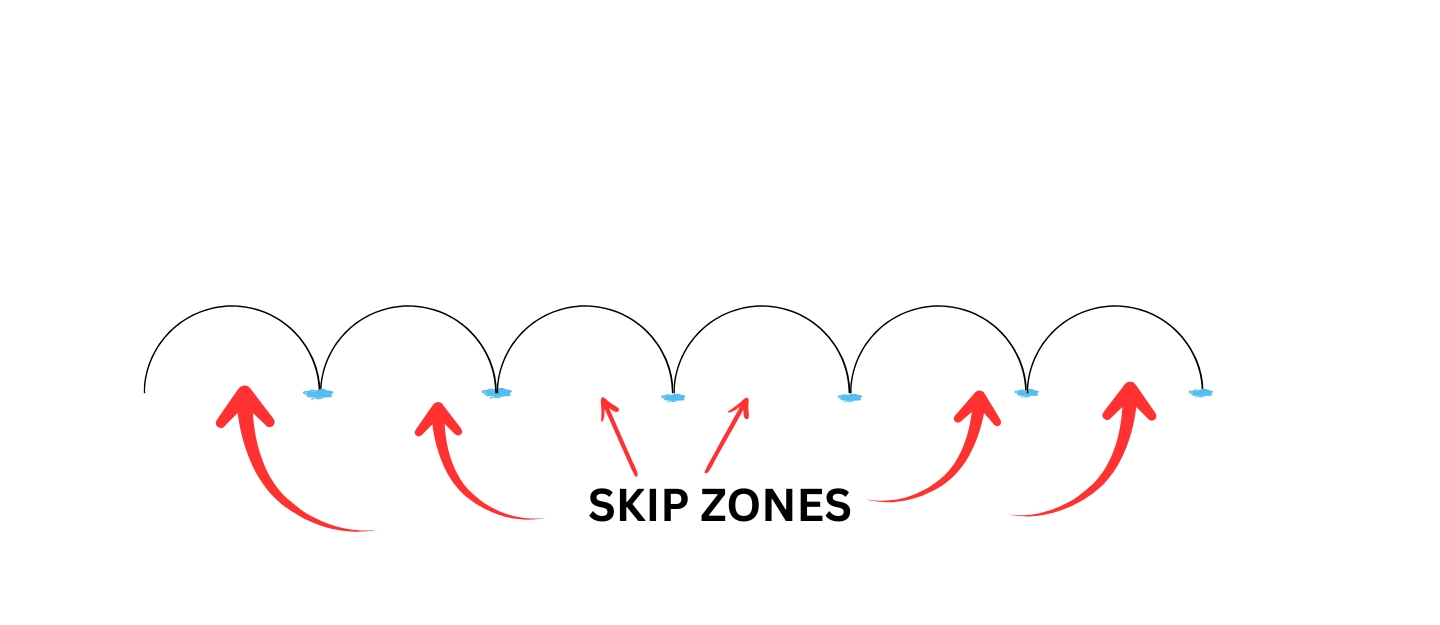

HF skip zones, also known as dead zones, play a significant role in long-distance radio communication. These areas exist between the point where a ground wave signal fades and where the first skywave signal returns to Earth.
When a station transmits on certain frequencies, signals may completely skip over nearby regions, leaving operators in those areas unable to hear or contact the station. As a result, understanding skip zones helps operators plan their frequencies and antenna setups more effectively.
HF propagation depends on how the ionosphere refracts radio waves. When a signal leaves the antenna, it either travels along the ground or reflects off the ionosphere to cover greater distances.
If the frequency is too high or the angle of radiation is too steep, the returning skywave may not land close to the transmitter. Consequently, this creates a gap where no reliable signal exists, leaving nearby operators unable to establish communication.
Causes of Skip Zones
Several factors influence the size and presence of skip zones. The most important factor is the ionospheric layer being used for reflection. During the day, the D and E layers dominate lower frequencies, absorbing some signals while refracting others. At night, the F layer becomes more active, allowing higher frequencies to reflect over longer distances. Therefore, time of day directly affects the extent of a skip zone.
Additionally, the takeoff angle of the antenna plays a critical role. Antennas that radiate at low angles send signals farther before they return, which enlarges the skip zone. Conversely, antennas with higher takeoff angles reduce the size of the zone, making them useful for regional contacts. Ground conductivity, seasonal changes, and solar activity further influence how signals behave, often causing skip zones to shift unexpectedly.
Weather patterns also affect the ionosphere. For instance, solar flares and geomagnetic storms can dramatically change propagation conditions within minutes. As a result, a previously small skip zone can grow suddenly, leaving local operators temporarily out of range.
Identifying Skip Zones Through Observation
Operators can identify HF skip zones by carefully monitoring signal reports and listening patterns. When stations at distant locations are loud while nearby stations are completely absent, a skip zone likely exists between those points. This effect becomes especially clear during contests or nets when multiple stations are active across different regions.
Another effective method involves using online propagation maps or software. These tools display real-time signal paths and can highlight areas where communication is currently impossible. However, you should always confirm this information through direct listening, as conditions change quickly.
During field operations, such as emergency communications or portable activations, operators can experiment with different frequencies to determine where skip zones begin and end. By logging reports from various distances, you gain valuable data for future planning.
Managing Skip Zones With Frequency Selection
Choosing the right frequency is the most effective way to manage skip zones. When the operating frequency is close to the Maximum Usable Frequency (MUF), signals travel farther before returning, which increases the size of the skip zone. Switching to a lower frequency forces the signal to refract sooner, bringing the coverage area closer to the transmitter.
For example, if 20 meters is skipping over local stations, dropping to 40 meters may restore regional communication. Similarly, during daylight hours, frequencies like 80 meters or 160 meters often work better for short-range contacts because they refract at higher angles.
Monitoring the Lowest Usable Frequency (LUF) also matters. If you choose a frequency below the LUF, signals will be absorbed by the ionosphere instead of refracted. This results in no usable communication, regardless of distance. Therefore, balancing between MUF and LUF ensures reliable coverage.
Antenna Strategies to Reduce Skip Zones
Antenna design and placement greatly influence skip zone behavior. Operators aiming for close-range communication should focus on high-angle radiation. Near-vertical incidence skywave (NVIS) antennas are ideal for this purpose because they send signals almost straight up, causing them to return nearby and fill in the dead zone.
On the other hand, directional antennas with low takeoff angles excel at long-distance DX contacts but naturally create larger skip zones. By understanding your antenna’s radiation pattern, you can decide whether to focus on local, regional, or international communication.
Adjusting antenna height also impacts skip zones. Lowering a horizontal dipole closer to the ground increases the takeoff angle, reducing the gap between ground wave coverage and skywave return. Conversely, raising the antenna higher emphasizes low-angle radiation and extends the skip zone.
Practical Applications of Skip Zone Knowledge
Recognizing HF skip zones is critical for emergency communication planning. During disasters, reliable communication with nearby stations is often essential. If a skip zone prevents local coverage, switching to NVIS techniques or lower frequencies ensures first responders remain connected.
In contests and DXing, understanding skip zones helps operators optimize their strategy. When a band suddenly opens to distant stations, knowing where the dead zone lies allows you to target specific regions for maximum success. Furthermore, by anticipating skip zone shifts, you can time your band changes more effectively.
Mobile and portable operators also benefit from this knowledge. When setting up temporary stations, they can quickly adjust antennas and frequencies to suit the immediate communication needs of their team.
Monitoring Skip Zone Changes in Real Time
Skip zones are dynamic and change rapidly with solar activity, time of day, and even sudden weather events. Operators should continually monitor propagation indicators such as solar flux, geomagnetic indices, and real-time DX cluster reports.
By combining this data with careful listening, you can anticipate when a skip zone will expand or contract. For instance, during sunrise and sunset, the ionosphere undergoes rapid transitions that often shift skip zones dramatically. Planning your transmissions around these times increases your chances of success.
Conclusion: Turning Skip Zones Into Opportunities
HF skip zones are a natural part of radio propagation, but skilled operators can manage and even exploit them. By understanding the causes of skip zones and learning how to identify them, you gain control over your communication strategy. Moreover, using the right combination of frequency selection and antenna design allows you to minimize their impact.
With practice and careful observation, you will turn these once-frustrating dead zones into predictable elements of your operating plan. Ultimately, mastering skip zones enables you to maintain consistent communication across all distances, from local networks to rare DX contacts, regardless of changing conditions.
