Complete Guide to Ham Radio Microphones

Complete Guide to Ham Radio microphones covers the first link in your transmit audio chain. It converts your voice into an electrical signal that your transceiver processes, modulates, and transmits over the air. While transceivers generate RF power and antennas radiate signals, the microphone determines how clearly and accurately your voice is captured before transmission. Audio quality, intelligibility, and signal presence all begin at the microphone.

Many operators focus heavily on transmit power and antenna performance, yet poor audio capture can limit communication effectiveness just as much as weak propagation. A properly selected and adjusted microphone improves clarity, reduces distortion, and ensures your transmitted signal is easy to understand under real operating conditions.

Understanding microphone types, pickup patterns, frequency response, gain structure, and station integration allows you to optimize your transmit audio for both voice and digital communication environments.

How Ham Radio Microphones Work

A microphone converts sound waves into electrical energy. When you speak, air pressure variations strike a diaphragm inside the microphone. That diaphragm moves in response, creating an electrical signal that mirrors your voice waveform. This signal travels to the transceiver, where it is amplified, processed, and used to modulate the transmitted RF carrier.

The accuracy of this conversion determines audio quality. Different microphone designs use different methods to generate the electrical signal, and each design produces distinct performance characteristics.

Dynamic Microphones

Dynamic microphones generate signal through electromagnetic induction. A diaphragm attached to a coil moves within a magnetic field, producing an electrical current.

These microphones are rugged, reliable, and resistant to overload from loud speech. They require no external power and are widely used in handheld and mobile radio operation.

Advantages include durability, simplicity, and resistance to environmental noise. Because of their robustness, they are common in stock microphones supplied with transceivers.

However, dynamic microphones may have limited sensitivity compared to studio-grade designs and may require higher gain settings.

Condenser Microphones

Condenser microphones use a charged diaphragm and backplate to form a capacitor. Sound waves change the distance between these elements, producing a signal proportional to air pressure variations.

These microphones are highly sensitive and capture fine vocal detail. They are widely used in base stations and studio-style operating setups where high audio fidelity is desired.

Because they require electrical bias voltage, they need power supplied either by the radio or an external audio interface.

Their sensitivity also means they can capture more background noise if the operating environment is not controlled.

Electret Microphones

Electret microphones are a specialized form of condenser design that contains a permanently charged element. They require less external voltage and are commonly used in modern handheld and headset microphones.

They provide good sensitivity, compact size, and low cost. Many contemporary radio microphones use electret elements because they balance performance and convenience.

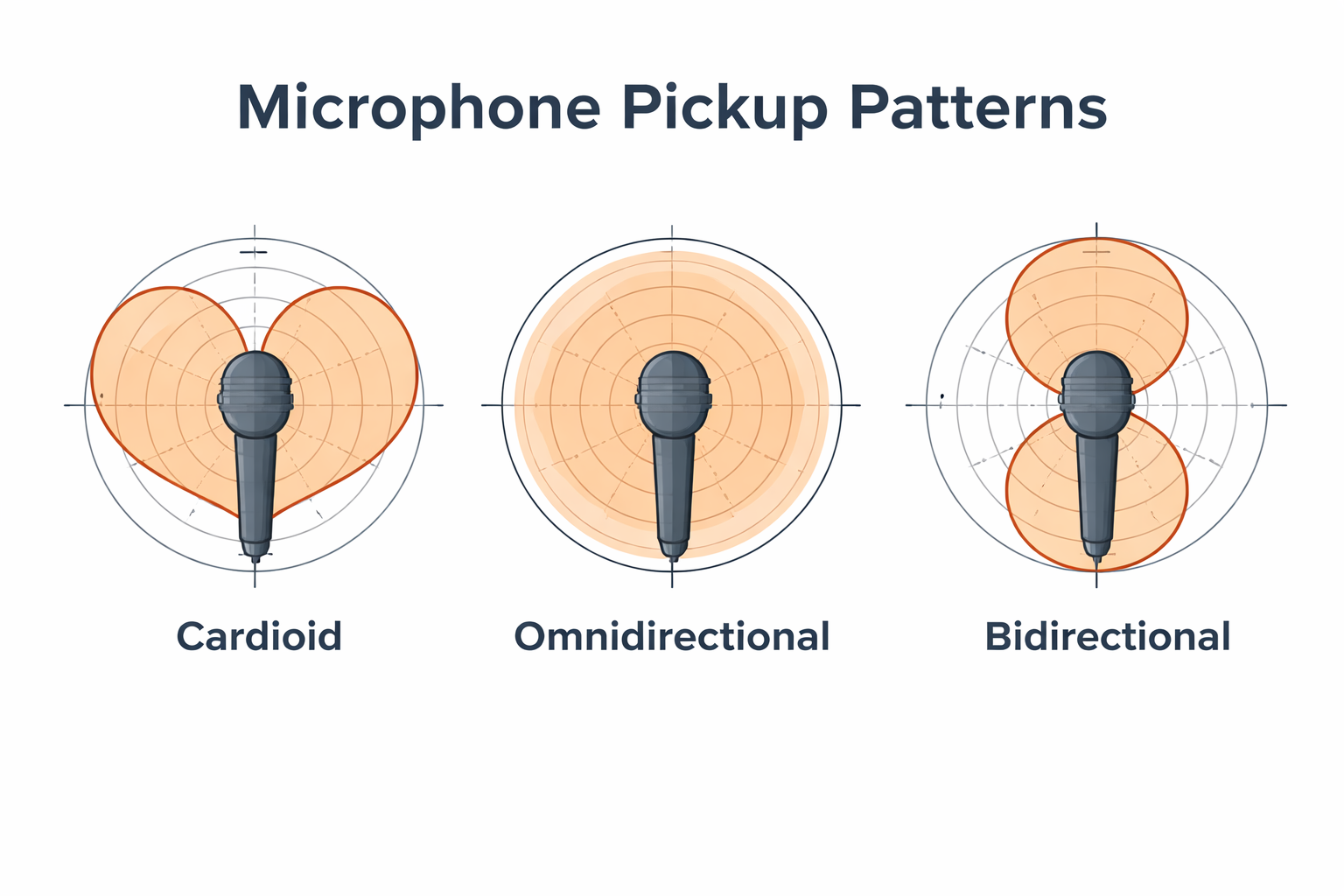

Microphone Pickup Patterns

Pickup pattern describes how a microphone responds to sound from different directions. This characteristic affects background noise rejection and voice focus.

Omnidirectional microphones capture sound from all directions. They are forgiving in positioning but pick up more ambient noise.

Cardioid microphones are most sensitive to sound from the front and reject sound from the rear. This helps reduce room noise and improves voice clarity.

Supercardioid and hypercardioid patterns provide even narrower front sensitivity with stronger side rejection, useful in noisy environments.

Choosing the correct pickup pattern helps control unwanted noise and improves transmitted intelligibility.

Frequency Response and Voice Clarity

Frequency response describes which audio frequencies a microphone captures most effectively. Human speech occupies a specific frequency range, and microphones designed for communication often emphasize frequencies that improve intelligibility rather than full musical fidelity.

Some microphones accent midrange frequencies where consonants are most prominent. This helps speech cut through noise and improves readability in weak-signal conditions.

Studio microphones often provide broader response for natural voice reproduction, which may be desirable for high-fidelity transmission but unnecessary for standard communication.

Microphone Gain and Level Control

Microphone output level must match the transceiver’s input requirements. Too little gain produces weak audio. Too much gain causes distortion, clipping, or over-modulation.

Many transceivers provide microphone gain adjustment, compression control, and equalization options. Proper adjustment ensures strong, clean audio without splatter or distortion.

Correct gain structure is one of the most important factors in transmit audio quality.

Compression and Audio Processing

Speech compression increases average audio power by reducing dynamic range. This makes your signal more readable, especially under marginal conditions.

Equalization shapes the tonal balance of transmitted audio. Operators may adjust bass and treble response to improve articulation.

Modern radios include digital signal processing features that allow precise audio shaping for different operating conditions.

Handheld Microphones

Hand microphones combine a microphone element and push-to-talk control in a compact unit. They are standard equipment for mobile and base radios.

They provide convenient operation and simple integration with minimal setup requirements.

Desk Microphones

The larger units designed for base station use are desk microphones. They often provide improved audio quality, stable positioning, and additional controls such as gain adjustment or tone shaping.

Many operators prefer desk microphones for long operating sessions or high-quality audio transmission.

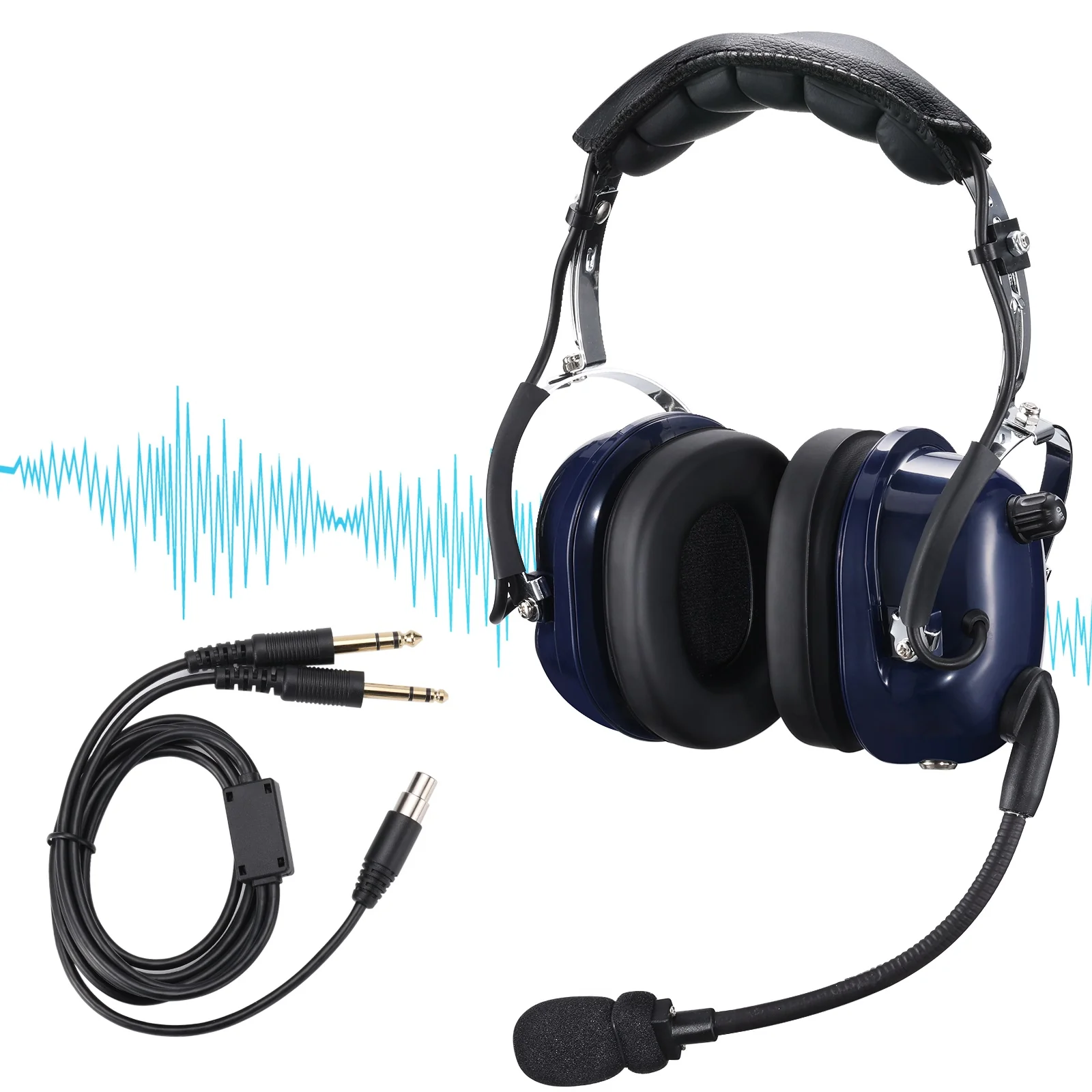

Headset Microphones

Headset microphones position the microphone close to the mouth, maintaining consistent audio level regardless of operator movement. They are widely used in contesting, portable operation, and noisy environments.

Because distance remains constant, audio level is stable and background noise is reduced.

Boom Microphones and Close-Talk Audio Control

Boom microphones mount on an adjustable arm or headset and position the microphone element very close to the operator’s mouth. This close placement allows consistent audio level, improved intelligibility, and strong rejection of background noise. Because the distance between the mouth and microphone remains fixed, boom microphones provide highly stable transmit audio even when the operator moves, turns their head, or changes posture.

In ham radio operation, consistency is extremely important. Variations in speaking distance can cause large changes in modulation level, which may lead to weak audio, distortion, or over-modulation. Boom microphones solve this problem by maintaining a constant acoustic relationship between voice and microphone. As a result, audio remains predictable and easier to optimize.

Boom microphones are commonly integrated into headsets used for contesting, DX operation, emergency communication, and portable field activity. In these environments, operators often work for long periods or operate in noisy conditions. A boom microphone allows hands-free communication while keeping transmit audio strong and controlled.

Another advantage is improved background noise rejection. Because the microphone is positioned very close to the mouth, the operator’s voice is much stronger relative to surrounding sounds. This improves signal clarity in crowded rooms, field stations, mobile environments, and public event operations. Directional boom microphones further enhance this effect by focusing sensitivity toward the speaker and reducing off-axis noise.

Many boom microphones use dynamic or electret elements designed specifically for close-talk communication. These elements often emphasize speech frequencies that improve intelligibility rather than full-range audio fidelity. This tuning helps signals remain readable under weak propagation conditions or band noise.

Proper positioning is important for best performance. The microphone should typically sit slightly to the side of the mouth rather than directly in front of airflow. This reduces breath noise, plosive sounds, and distortion from strong air pressure during speech. Small placement adjustments can significantly improve transmitted audio quality.

Boom microphones are especially valuable for operators who require consistent modulation, low noise pickup, and hands-free operation. They provide controlled audio input that simplifies gain adjustment and improves overall transmit clarity. For contesters, portable operators, and anyone working in challenging environments, a well-positioned boom microphone can dramatically improve communication effectiveness.

Microphone Impedance and Compatibility

Microphones must match the electrical characteristics of the transceiver input. Impedance mismatch can reduce signal level or degrade audio quality.

Some microphones require adapters or interface circuits to operate correctly with specific radios.

Always verify compatibility before connecting external microphones.

Station Integration and Audio Chain

In advanced stations, the microphone may feed external audio processors, equalizers, or mixers before reaching the transceiver. Each stage must maintain proper signal levels and impedance matching.

Careful system integration ensures clean, controlled audio transmission.

Choosing the Right Microphone

Selection depends on operating style, environment, and performance goals. Mobile operation favors rugged handheld microphones. Base stations may benefit from desk or studio microphones. Noisy environments benefit from directional pickup patterns. High-fidelity operation may favor condenser designs.

The best microphone is the one that produces clear, intelligible audio under your specific operating conditions.

Optimizing Transmit Audio

Proper microphone placement, correct gain settings, and appropriate processing adjustments dramatically improve transmitted audio quality. Consistency in speaking distance and level helps maintain stable modulation.

Regular monitoring and adjustment ensure optimal performance.

Complete Guide to Ham Radio Microphones

Complete Guide to Ham Radio Microphones defines, they determine how your voice enters the transmit chain. While power and antennas determine how far a signal travels, the microphone determines how clearly your message is delivered. Understanding microphone technology, audio processing, and station integration allows you to produce clean, strong, and intelligible transmissions across all operating conditions.
