SO2R Station Design

SO2R Station Design, or Single Operator Two Radio station, represents one of the most advanced techniques in contesting and DX hunting. It allows a single operator to transmit on one radio while listening or searching for multipliers on another. By operating two radios simultaneously, contesters dramatically increase their contact rate and overall score.

This setup demands careful planning, specialized equipment, and highly developed operating skills. Since two signals operate independently, a well-designed SO2R station must prevent interference while maintaining smooth workflow. With proper design, SO2R stations deliver exceptional performance even in the most competitive environments.

Benefits of SO2R Operation

The main advantage of SO2R operation lies in efficiency. While one radio runs a frequency and continuously makes contacts, the second radio searches other bands for new stations. Therefore, operators maintain nearly constant activity without wasted time between CQs. This strategy significantly boosts the total number of contacts and multipliers logged during contests.

Additionally, SO2R improves band awareness. By monitoring multiple bands simultaneously, operators can quickly identify openings or changing propagation. This real-time knowledge allows faster decision-making and better band transitions. Furthermore, SO2R trains operators to multitask under pressure, sharpening their overall contesting skills.

Essential Components of an SO2R Station

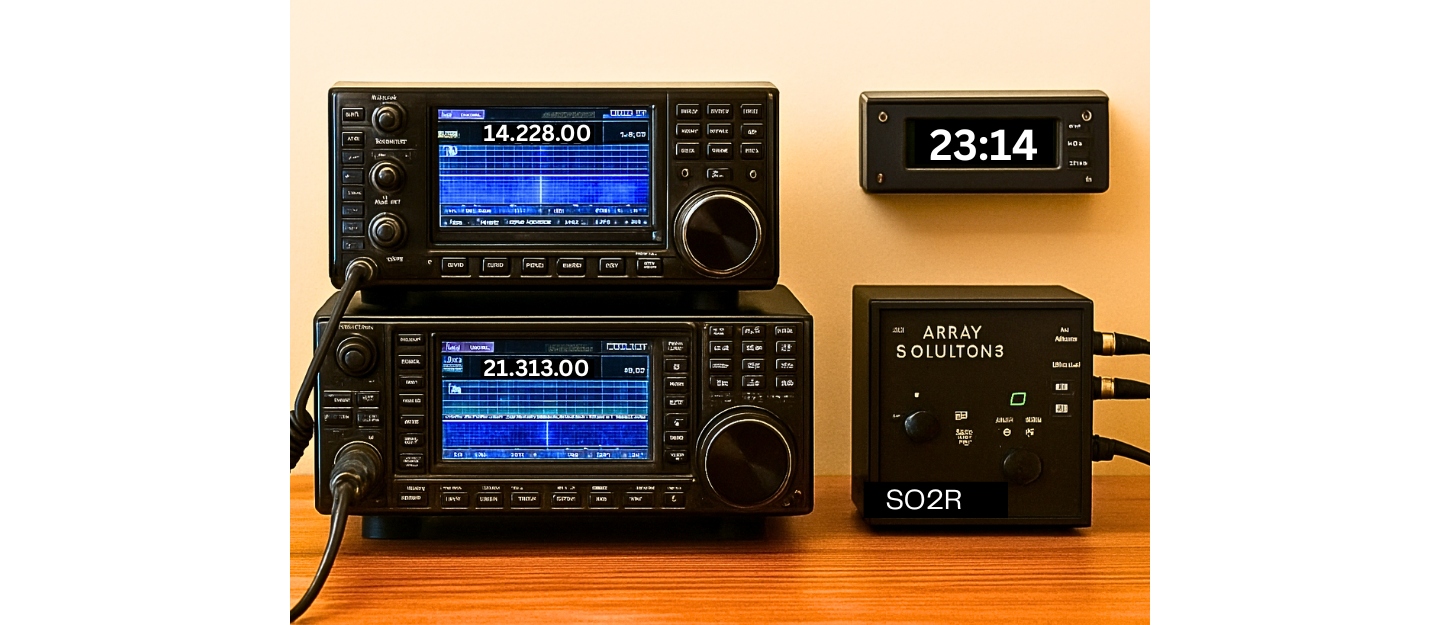

Building a reliable SO2R station requires specialized equipment. Two radios form the core of the setup, and they should be identical or at least similar in features. Matching radios simplify ergonomics and reduce the learning curve when switching between them.

An SO2R controller manages audio, keying, and band switching between radios. These devices allow seamless transition from one radio to another without confusion. Moreover, the controller integrates with contest logging software to track which radio is active at any given moment.

High-quality bandpass filters play a vital role in preventing interference. Since both radios may transmit on different bands simultaneously, strong signals can overload receivers without proper filtering. Therefore, each band must have a dedicated filter to isolate signals and maintain clean operation.

Finally, proper grounding and isolation techniques are essential. Separate grounding paths, coaxial chokes, and shielded cables minimize RF feedback and noise. With these measures, both radios can operate at full power without causing harmful interference.

Antenna Strategy for SO2R

A well-designed antenna system determines how effectively an SO2R station performs. Ideally, each radio should have access to multiple antennas on different bands. This flexibility ensures operators can transmit and receive independently without overlap.

Directional antennas like Yagis allow targeting specific regions while reducing unwanted signals. Stacking or rotating multiple directional antennas provides even greater coverage. For lower bands, separate verticals or dipoles help maintain isolation between radios.

Operators often use automatic antenna switches to simplify control. With these systems, antennas change automatically when the operator switches bands. Consequently, workflow remains smooth and efficient during high-speed contesting.

Furthermore, spacing antennas appropriately prevents inter-station coupling. Placing verticals or towers at least one wavelength apart minimizes mutual interference. For stations with limited space, careful planning and filtering compensate for closer antenna placement.

Managing Interference and Signal Isolation

Interference poses the greatest challenge in SO2R design. Without proper isolation, one radio’s transmit signal can overload the other’s receiver, creating noise and blocking weak signals. Bandpass filters serve as the first line of defense, sharply attenuating unwanted signals from adjacent bands.

Additionally, stub filters and coaxial traps offer extra protection against harmonic interference. These devices target specific problem frequencies, allowing cleaner operation.

Operators must also focus on station layout. Keeping radios, amplifiers, and switching equipment physically separated reduces coupling between components. Using shielded enclosures and proper grounding further enhances isolation.

Monitoring with a spectrum analyzer or panadapter helps detect interference sources quickly. By identifying problem areas, operators can make targeted adjustments to improve station performance.

Radioddity

Ergonomics and Operator Workflow

SO2R operation requires rapid decision-making and flawless coordination. Therefore, station ergonomics are as important as technical design. Radios should sit at equal distance and height from the operator, with clear labeling on all controls.

Audio management plays a critical role. Operators typically use stereo headphones, dedicating one ear to each radio. This setup allows simultaneous monitoring while maintaining focus. Foot switches or hand paddles enable quick transitions between transmitters without interrupting workflow.

Logging software integration streamlines the process further. Programs like N1MM or Win-Test support SO2R, displaying information for both radios simultaneously. With well-configured macros, operators can send CQs, log contacts, and switch frequencies almost instantly.

Moreover, keeping the operating environment clutter-free reduces errors during contests. Simple adjustments, such as proper lighting and cable management, improve focus and comfort during long operating sessions.

Software and Automation Integration

Modern SO2R station designs rely heavily on automation. Contest logging software communicates with radios, antenna switches, and amplifiers to synchronize band changes automatically. This reduces operator workload and minimizes mistakes during rapid transitions.

Macros play a crucial role in automation. By programming custom messages, operators can send contest exchanges, switch bands, or change modes with a single keystroke. Furthermore, software features like “dual CQ” allow simultaneous calling on two frequencies, dramatically increasing contact rates.

Remote control capabilities extend SO2R functionality even further. With internet-based control systems, operators can run stations from different locations while maintaining full SO2R capability. This flexibility is especially valuable for multi-operator teams or geographically separated station sites.

Training and Practice for SO2R

Even with the best equipment, SO2R operation demands extensive practice. Beginners should start slowly, focusing on running one radio while casually monitoring the second. Over time, they can progress to making simultaneous contacts on both radios.

Training exercises, such as simulated contests or sprint events, help develop timing and coordination. Recording operating sessions for later review also provides valuable insight into areas for improvement.

Furthermore, practicing with contest logging software before a major event ensures smooth performance under real conditions. Familiarity with macros and shortcut keys eliminates hesitation during critical moments.

Safety Considerations in SO2R Station Design

High-power operation and complex wiring introduce safety concerns. Proper grounding and lightning protection are non-negotiable for protecting both equipment and operators.

Amplifiers must include interlocks and fail-safes to prevent simultaneous transmission on both radios at unsafe levels. Overheating can become a problem during intense contesting, so adequate ventilation is essential for radios, amplifiers, and power supplies.

Labeling all cables and connections reduces the risk of mistakes during setup or troubleshooting. Additionally, keeping a clear emergency shutdown procedure ensures quick response if problems arise.

Final Thoughts On The SO2R Station Design

SO2R Station Design combines technical skill, strategy, and operator discipline. By carefully planning equipment layout, antenna systems, and interference management, operators create stations capable of world-class performance. Moreover, integrating automation and ergonomic design enhances speed and accuracy during contests.

Although challenging, mastering SO2R operation rewards operators with higher scores and more efficient contacts. With continued practice and thoughtful upgrades, even modest stations can evolve into competitive SO2R setups. Ultimately, a well-executed SO2R design empowers operators to push the limits of single-operator contesting and enjoy the full potential of modern amateur radio.
