Step-by-Step Guide to CHIRP, it is a powerful and free software tool that makes programming ham radios faster and more efficient. Many popular radios from brands like Baofeng, Wouxun, Yaesu, Icom, Kenwood, Radtel, vk2gj, and TYT use CHIRP, making it one of the most versatile solutions for amateur radio operators.
CHIRP supports hundreds of models, you can easily manage memory channels, settings, and frequency lists across different radios without learning a separate interface for each one. This guide will take you through every step, from preparing your hardware to writing new settings to your radio.
Understanding the Importance of CHIRP Compatibility
Thousands of ham radio operators use CHIRP because it supports a wide range of radios. It covers entry-level handhelds like the Baofeng UV-5R and advanced mobile units like the Yaesu FT-8800. Additionally, CHIRP works with commercial radios and public safety models, giving you flexibility if you operate in different environments.
Since radios often come with proprietary software that may be difficult to use or incompatible with modern computers, CHIRP simplifies the process with one consistent interface for all supported devices. As a result, it saves time and reduces errors when programming multiple radios.
Step 1: Gather the Necessary Hardware
Before using CHIRP, you must have the right hardware to connect your radio to your computer. Most radios require a specific programming cable that connects to the microphone or data port on the radio. Many handheld radios use a two-pin Kenwood-style connector, while some mobile radios require specialized cables designed for their brand.
These cables usually have a USB interface on one end, allowing you to connect directly to your computer. Always choose a quality cable with a genuine chipset, such as FTDI, to prevent communication issues. Poor-quality cables often cause read and write errors, leading to frustration.
Step 2: Download and Install CHIRP
Next, download CHIRP from the official CHIRP website. The software works on Windows, macOS, and Linux, so you can use it on nearly any modern computer. After downloading, install the program by following the on-screen instructions.
Once installed, open CHIRP and verify that your computer recognizes the programming cable by checking the available COM ports in your system settings. This step ensures that CHIRP will successfully communicate with your radio during the programming process.
Step 3: Connect the Radio to Your Computer
Turn off your radio before connecting it to the computer. Plug the programming cable into the radio’s data or microphone port and secure it firmly. Next, connect the USB side to your computer. Once connected, turn on the radio.
At this stage, make sure the radio battery is fully charged or connected to external power. This step prevents unexpected shutdowns during reading or writing, which could corrupt the radio’s memory.
Step 4: Read From the Radio
Reading from the radio is the first operation you should perform in CHIRP. This step downloads the current configuration from your radio to your computer, allowing you to back up existing settings before making any changes.
Open CHIRP, go to the “Radio” menu, and select “Download From Radio.” Choose the correct COM port, radio manufacturer, and model from the dropdown menus. CHIRP will then read the radio’s memory and display it on the screen. Reading is essential because it ensures you start with accurate data and avoid overwriting critical settings.
Step 5: Edit and Organize Your Channels
Once CHIRP displays the current radio configuration, you can edit channels and settings. Each row represents a memory channel where you can set the receive frequency, transmit frequency, tone modes like CTCSS or DCS, power level, and channel name.
You can also rearrange channels by dragging and dropping them to create a more organized layout. CHIRP allows you to copy and paste frequency lists from spreadsheets or online databases, which speeds up the process significantly. By organizing your channels, you make it easier to navigate your radio in the field.
Step 6: Add New Frequencies and Settings
Adding new frequencies is straightforward. Simply insert a new row and enter the desired receive and transmit frequencies. Configure other parameters such as offset direction, tone settings, and transmit power.
Because CHIRP supports many advanced settings, you can also customize options like squelch levels, step sizes, and scan lists. These adjustments help tailor the radio to your specific operating style. For instance, you might set up local repeaters, simplex frequencies, emergency channels, and special event frequencies all in one file.
Step 7: Save Your CHIRP File
Before writing changes to your radio, always save your CHIRP file. Go to the “File” menu and select “Save As.” This action creates a backup of your programming work, which you can reload later or share with other operators. Having a saved file is crucial for troubleshooting, especially if you need to reset the radio to a known working state.
Step 8: Write to the Radio
Writing to the radio applies your changes to the device. Go to the “Radio” menu and select “Upload To Radio.” Confirm that you have selected the correct COM port, radio manufacturer, and model.
CHIRP will then transfer the new settings to the radio. During this process, do not turn off the radio or disconnect the cable. Interrupting a write operation can corrupt the radio’s memory, sometimes requiring a factory reset or recovery procedure.
Why Reading and Writing Matter
Reading and writing are the two core functions of CHIRP. Reading ensures you have an accurate backup of the radio’s current configuration, preventing accidental loss of factory settings or custom channels.
Writing allows you to apply organized, optimized settings for your specific communication needs. Together, these processes make programming more efficient and less risky compared to manual keypad entry.

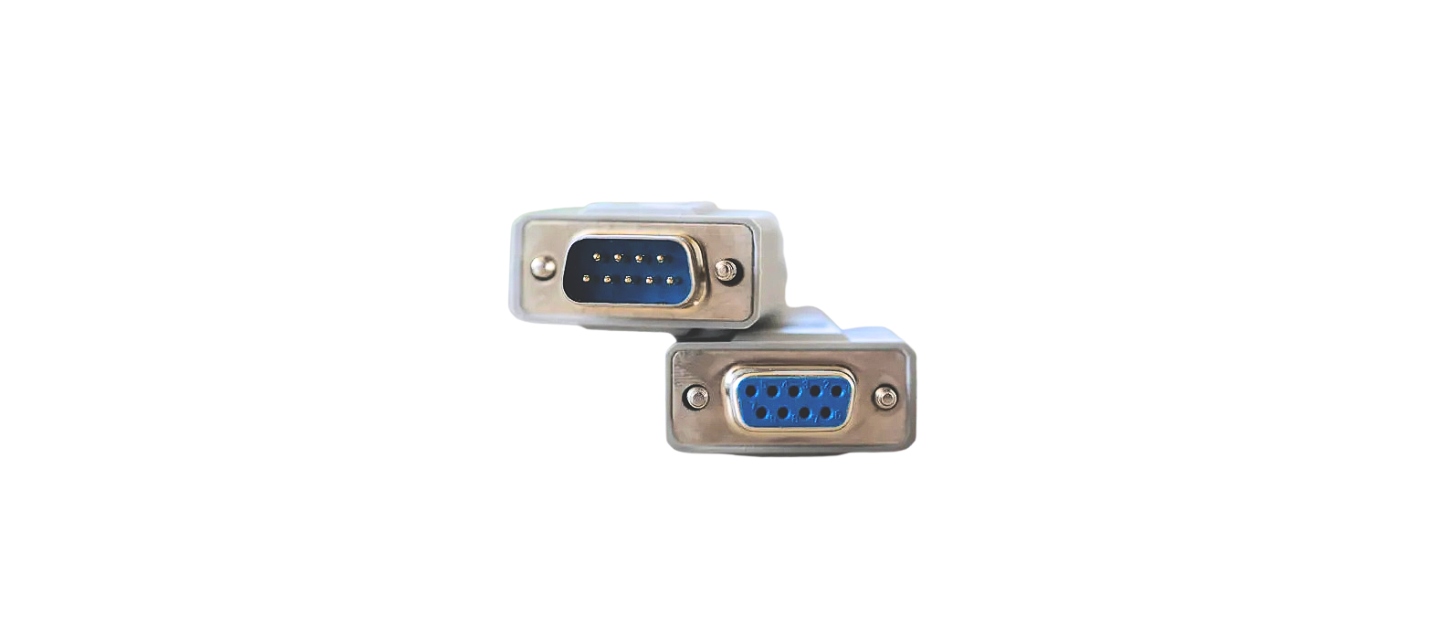

Cables and Troubleshooting Tips
Programming cables vary depending on the radio brand and model. Some radios use standard two-pin connectors, while others require specialized designs. Always verify compatibility before purchasing a cable. If CHIRP does not recognize your radio, check that the correct driver is installed for your cable’s chipset.
Additionally, ensure you have selected the correct COM port in CHIRP. If problems persist, try a different USB port or restart the computer to reset connections. Quality cables significantly reduce troubleshooting issues and provide stable communication between the radio and software.
Step-by-Step Guide to Chirp
Final Steps and Best Practices
After successfully programming your radio using the step-by-step guide to Chirp, test it on multiple channels to confirm that all settings transferred correctly. If a channel does not function as expected, return to CHIRP and review the configuration.
You can quickly make adjustments and rewrite the data. As you gain experience, create separate CHIRP files for different activities, such as local operations, emergency response, or field events. This practice keeps your radio ready for any situation and simplifies future updates.
CHIRP has become an essential tool for modern amateur radio operators because it supports a vast range of devices and streamlines the programming process. By following this step-by-step guide, you can confidently program your radios, maintain accurate backups, and ensure reliable communication wherever you operate.
