Choosing Wire vs. Vertical Antennas is one of the most important decisions for amateur radio operators. Because each design offers unique benefits and limitations, understanding their differences helps you select the right antenna for your needs.
While both types can deliver excellent performance, the best choice depends on your operating style, available space, and communication goals.
Understanding Wire Antennas
Wire antennas are among the oldest and most reliable antenna designs. They are typically simple to build, inexpensive, and easy to customize. Because they use long stretches of wire strung between supports, such as trees or poles, they work especially well for operators with room to spread out.
A basic dipole, for example, provides excellent performance on a single band and can be built in just a few hours. Many wire antennas are highly efficient because they have low losses when installed correctly.
Additionally, they provide strong performance on lower HF bands like 80 meters and 40 meters, making them popular for long-distance contacts. With the use of a tuner, multiband wire antennas such as off-center-fed dipoles or fan dipoles can cover a wide range of frequencies.
However, wire antennas require space and support structures. In densely populated areas, finding a place to install long wires can be difficult. Furthermore, they often perform best when elevated high above the ground, which may require tall trees or towers.
Understanding Vertical Antennas
Vertical antennas radiate signals in all directions, making them ideal for omnidirectional coverage. Because they have a low takeoff angle, they excel at long-distance DX communication. Even with limited space, vertical antennas can provide impressive performance because they require only a single support point and a smaller footprint.
Many vertical designs work across multiple bands, especially when paired with traps or tuners. This flexibility makes them attractive for operators who enjoy working various HF bands without switching antennas. Additionally, vertical antennas are often easier to install in urban or suburban environments where horizontal space is limited.
On the downside, vertical antennas usually need a good ground system or radial network to operate efficiently. Without proper grounding, performance suffers, and losses increase. They are also more susceptible to local noise because they pick up signals equally well from all directions, including unwanted interference.
Performance Comparison
When comparing wire antennas to vertical antennas, several performance factors come into play. Wire antennas tend to have higher efficiency and better signal-to-noise ratios, especially when installed at the proper height. This makes them ideal for regional contacts and near-vertical incidence skywave (NVIS) communication, which is essential for emergency networks and short-range coverage.
Vertical antennas, however, shine when it comes to DXing. Because they radiate signals at a lower angle, they reach distant stations more effectively. Consequently, many operators use vertical antennas for international contacts, while relying on wire antennas for local and regional communication.
Space and Installation Considerations
Space is often the deciding factor when choosing between these antennas. If you have a large yard or access to tall supports, wire antennas offer a cost-effective and powerful solution. Conversely, if you operate from a small lot, balcony, or portable location, a vertical antenna provides strong performance without requiring horizontal space.
Installation complexity also varies. Wire antennas require planning for support points and safe routing of wires. Vertical antennas are simpler to erect but demand careful attention to grounding and radials. Therefore, your available time, tools, and environment will influence your decision.
Cost and Maintenance
Wire antennas are generally more affordable because they use basic materials like wire, insulators, and coaxial cable. They are also easy to repair or modify, which appeals to operators who enjoy experimenting. Vertical antennas, on the other hand, often cost more due to their mechanical structure and the need for additional components such as matching networks or traps.
Maintenance requirements differ as well. Wire antennas may need occasional adjustments as trees grow or supports shift, while vertical antennas are more prone to weather damage due to their upright position. Consequently, regular inspections are essential for either type.
Combining Both Antennas
Many operators choose to use both wire and vertical antennas to take advantage of their strengths. For example, you can install a wire antenna for local coverage and a vertical antenna for DX work. Switching between them based on operating goals provides flexibility and ensures you are prepared for changing band conditions.
Additionally, combining antennas allows for experimentation with phased arrays or diversity reception. This approach gives you valuable insights into propagation and antenna performance while expanding your capabilities.

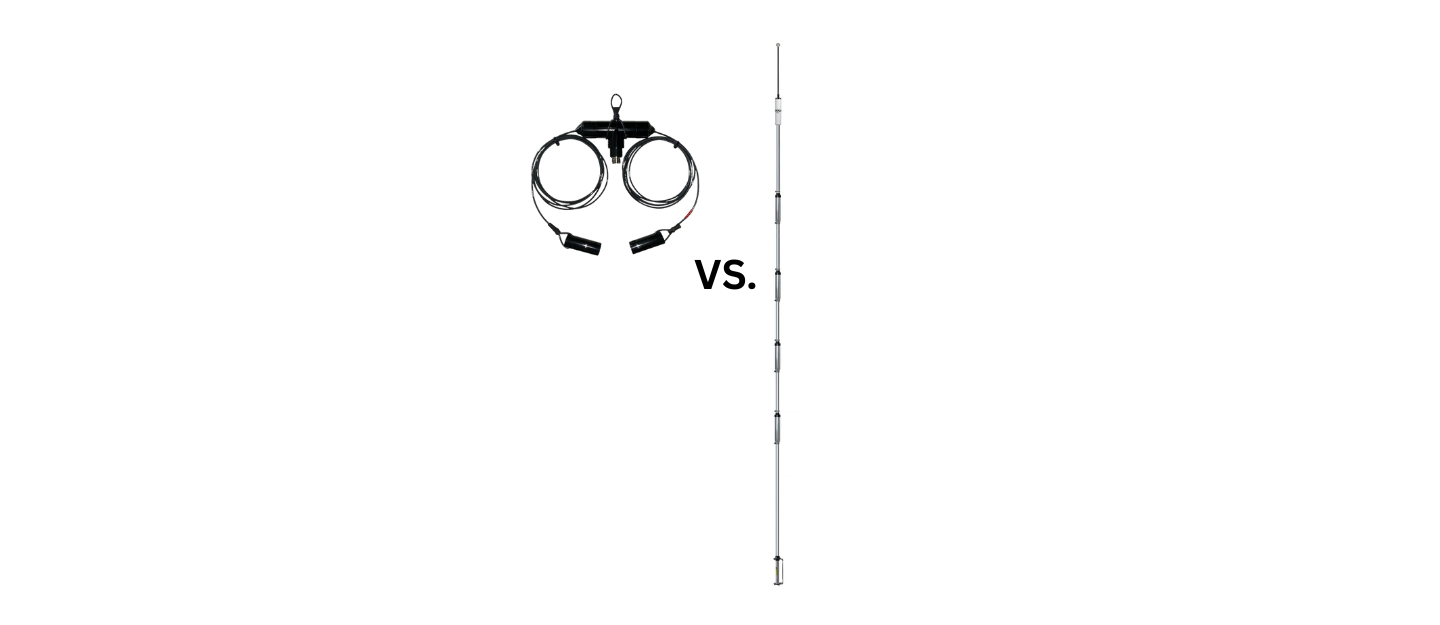

Wire vs. Vertical Antennas
With wire vs. vertical antennas, each brings distinct advantages to amateur radio. By considering factors such as space, cost, performance, and installation, you can choose the antenna that best matches your needs.
In many cases, combining both types provides the greatest versatility. With a clear understanding of their differences, you can build a station that performs well across a variety of operating conditions, ensuring consistent and enjoyable communication.
