Amplifier Bias Explained
Amplifier bias explained as a DC voltage or current to an active device, such as a transistor or vacuum tube, to establish its operating point before you apply an RF or audio signal.. In an amateur radio amplifier, the bias determines how the active device responds to the input signal and has a direct effect on linearity, efficiency, idle current, heat generation, and distortion.
Understanding amplifier bias is especially important when working with RF power amplifiers because the bias point determines the amplifier’s operating class. A properly biased linear amplifier can reproduce an SSB, AM, or other amplitude-varying signal with relatively low distortion, while an amplifier biased for a nonlinear operating class can provide much higher efficiency when the signal type allows it.
For amateur radio operators, amplifier bias is more than a theoretical electronics concept. It explains why an RF amplifier may draw current with no RF drive, why an improperly adjusted amplifier can overheat, why SSB amplifiers require linear operation, and why the correct bias depends on the device, circuit design, operating class, and transmission mode.
What Is Amplifier Bias?
Amplifier bias establishes the quiescent operating point of an amplifying device. When no signal is present, the device operates in its quiescent condition. Depending on the device and amplifier circuit, the designer can establish this operating point with a voltage, current, resistor network, bias supply, or combination of these methods.
The purpose of bias is to place the active device in the portion of its characteristic curve required by the circuit. The correct point depends on what the amplifier is designed to do. A linear RF amplifier needs an operating point that permits the device to reproduce the required waveform with acceptable distortion, while a high-efficiency switching or nonlinear stage may intentionally operate closer to cutoff.
This is why there is no single “correct bias voltage” that applies to every amplifier. The correct value comes from the amplifier’s design and the manufacturer’s service specifications.
New to Ham Radio Amplifiers? See our Complete Guide to Ham Radio Amplifiers.
Why Is Amplifier Bias Important?
Bias affects several important characteristics of an amplifier at the same time. It influences the device’s idle current, conduction angle, linearity, efficiency, heat dissipation, and ability to reproduce the input waveform.
If the bias is too low in a linear RF stage, the active device may not conduct enough during portions of the waveform. This can increase distortion and create unwanted intermodulation products. If the bias is too high, the device can conduct excessively at idle, increasing heat and reducing efficiency.
In a properly designed amplifier, the bias circuit establishes a predictable operating point and keeps the device within the intended operating region. That is particularly important in RF power amplifiers because small errors at high power can result in significant heat or distortion.
What Is Quiescent Current?
Quiescent current is the current drawn by an amplifier’s active device when no signal is being applied. It is often one of the most useful measurements when evaluating or adjusting the bias of a transistor RF power amplifier.
For example, a transistor amplifier may draw a specified amount of collector or drain current with no RF drive. That current represents the device’s operating condition before the RF waveform begins changing the current.
The correct quiescent current is not universal. It depends on the transistor or MOSFET, supply voltage, amplifier class, circuit topology, temperature compensation, and manufacturer’s design specifications. Therefore, the service manual or technical documentation should always take precedence over a generic bias value found online.
How Bias Works in a Transistor
In a bipolar junction transistor, bias establishes the relationship between the base, emitter, and collector voltages and currents.In a simple silicon transistor circuit, the base-emitter junction may operate around the familiar 0.6–0.7 V range under specific conditions, but you should not treat this value as a universal transistor bias setting.
The actual voltage and current required depend on the transistor, operating current, temperature, circuit configuration, and intended operating class. RF power transistors can have substantially different bias requirements from small-signal transistors.
A BJT amplifier may use a resistor divider, emitter resistor, active bias circuit, or temperature-compensated network to establish the required operating point. The bias network must remain stable as the device temperature and operating conditions change.
How Bias Works in a FET or MOSFET RF Amplifier
Field-effect transistors use voltage at the gate relative to the source to control the device’s drain current. In an RF power amplifier, the bias circuit establishes the required gate-source voltage and therefore the desired quiescent drain current.
The exact voltage varies substantially between devices. A voltage that is correct for one MOSFET may be excessive or insufficient for another, so substituting a generic gate-bias number is not a safe way to service an RF amplifier.
Many modern RF power amplifiers use dedicated bias-control circuitry rather than a simple potentiometer. These circuits can provide temperature compensation, current regulation, sequencing, and protection.
How Bias Works in a Vacuum Tube Amplifier
Vacuum-tube amplifiers use a different bias arrangement than transistor amplifiers, but the basic principle remains the same: bias establishes the tube’s operating point before the signal reaches the amplifier.
In a tube RF power amplifier, grid bias can determine the resting plate current and the conduction angle of the tube. Depending on the design, the circuit can generate bias with a fixed negative supply, cathode bias, or another bias arrangement.
Tube amplifiers can contain lethal high voltages even after you switch off the power because capacitors can retain their charge.Do not attempt to measure or adjust tube-amplifier bias unless you understand the circuit, know the required safety procedures, and have the correct service documentation and test equipment.
What Does Amplifier Bias Actually Control?
Bias helps determine how much of each RF waveform cycle the active device conducts. This is closely related to amplifier class.
The major traditional RF amplifier classes discussed by amateur radio operators are Class A, Class B, Class AB, and Class C. The classes are primarily distinguished by conduction angle and the resulting trade-off between linearity and efficiency.
Class A conducts throughout the complete cycle. The Class B conducts for approximately half of the cycle. Class AB conducts for more than half but less than the complete cycle, while Class C conducts for less than half of the cycle.
Changing the bias point can therefore change the operating behavior of the stage. However, the bias is only one part of the complete amplifier design. The device, load network, drive level, feedback, temperature compensation, and other circuit characteristics also determine actual performance.

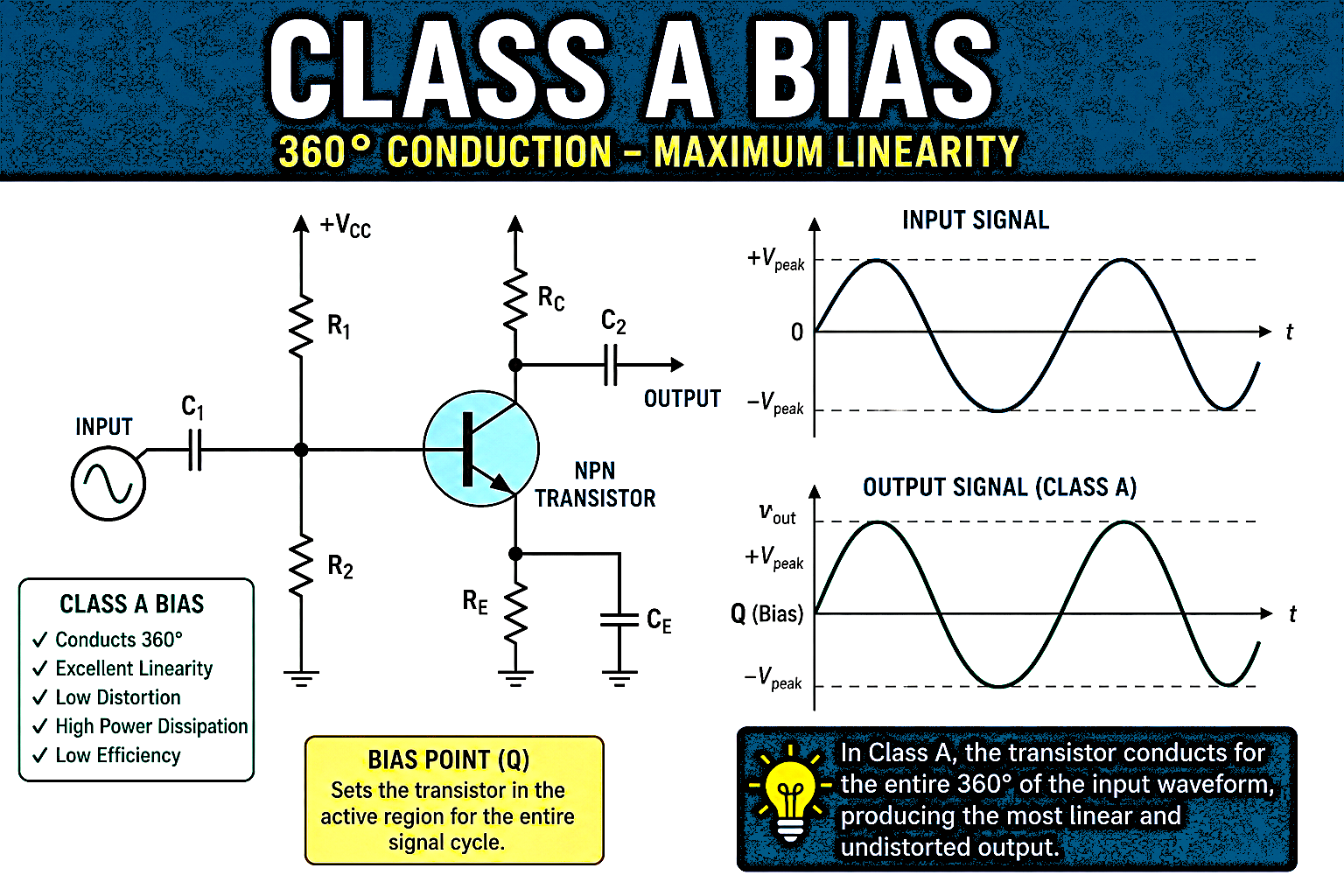

Class A Bias
A Class A amplifier is biased so that the active device conducts throughout the entire 360-degree RF cycle. The device remains conducting even when there is no input signal.
The major advantage is excellent linearity. Because the active device does not switch off during part of the waveform, crossover-related distortion is avoided.
The disadvantage is efficiency. The device consumes substantial DC power even when it is not producing useful RF output. The theoretical maximum efficiency of a conventional Class A amplifier with appropriate inductive coupling is 50 percent, with practical efficiency generally lower.
Class A can be useful where linearity is especially important, but its heat and power requirements make it less attractive for high-power amateur radio transmitters than more efficient linear classes.
Class B Bias
The Class B operation biases the active devices so that each device conducts for approximately 180 degrees of the RF cycle. A push-pull arrangement can combine the two halves of the waveform to reproduce the complete signal.
Class B provides substantially better efficiency than Class A, but the transition between devices can introduce crossover distortion. That distortion is particularly undesirable when the amplifier must reproduce amplitude information accurately.
Class B can work in linear amplifier designs, but many practical RF linear stages use Class AB bias to reduce crossover distortion while retaining much of Class B’s efficiency.
Class AB Bias
The Class AB is one of the most important amplifier classes for amateur radio because it provides a practical compromise between linearity and efficiency.
Bias the devices slightly above the Class B cutoff point so that each device conducts for more than 180 degrees but less than 360 degrees. The small overlap around the crossover region reduces the distortion that can occur when one device turns off and the other takes over.
Class AB is widely used for linear RF amplification because it reproduces amplitude-varying signals while delivering substantially better efficiency than Class A.. ARRL material identifies Class A, AB, AB2, and B as operating modes used for linear RF amplifiers.
This is particularly important for SSB. An SSB signal contains continuously varying amplitude information, so the amplifier must preserve that information rather than simply switching the RF on and off.
Class C Bias
Class C uses a bias point below the normal conduction threshold so that the active device conducts for less than 180 degrees of the RF cycle.
This produces significant waveform distortion at the active device, but it also allows very high efficiency. A tuned RF output network can use the device’s current pulses to reconstruct a sinusoidal RF waveform at the desired frequency while filtering unwanted harmonics.
Class C is therefore useful for constant-envelope RF applications such as FM. It can also be used in CW transmitter stages because the information is not contained in continuously varying RF amplitude in the same way as an SSB signal. ARRL specifically identifies Class C as appropriate for FM and notes that Class C is not suitable for amplifying a normal SSB signal because of the resulting distortion.
Why Class C Cannot Normally Amplify SSB
This is an important distinction for amateur radio operators.
An SSB signal contains information in its amplitude variations. A nonlinear Class C stage does not reproduce those amplitude variations accurately. Instead, the active device conducts only during part of the RF cycle and effectively behaves in a limiting or switching-like manner.
The result can be severe distortion and unwanted spectral products. In an amateur radio transmitter, that distortion can produce excessive occupied bandwidth and interference outside the intended signal.
For this reason, a conventional SSB linear amplifier is normally operated in a linear class such as Class A, B, or AB rather than Class C.
Which Amplifier Class Is Best for SSB?
For a conventional amateur radio SSB linear amplifier, Class AB is generally the practical choice because it provides a good balance between linearity and efficiency.
Class A offers excellent linearity but wastes considerably more DC power as heat. Class B can provide higher efficiency but introduces the possibility of crossover distortion. The Class AB reduces that crossover region while retaining much of the efficiency advantage of Class B.
The exact operating class is ultimately determined by the amplifier’s design. An operator should never change an amplifier’s bias simply to force it into a different class unless the circuit was specifically designed to support that operating mode.
Which Amplifier Class Is Best for FM?
Class C can be appropriate for FM because conventional FM carries information primarily through frequency variation rather than amplitude variation. A properly designed Class C stage can therefore provide high efficiency while a tuned output network filters the harmonics produced by the nonlinear device.
Modern RF transmitters can also use other amplifier classes and architectures, including highly efficient switching and linearization techniques. Therefore, “FM equals Class C” should be treated as a traditional RF design principle rather than a statement that every modern FM transmitter uses Class C.
Which Amplifier Class Is Best for CW?
Class C can be appropriate for a CW RF power stage because conventional CW transmission uses an RF carrier that is keyed rather than carrying continuously varying amplitude information like SSB.
However, the complete transmitter design matters. Keying shaping, spectral purity, harmonic filtering, drive control, and the behavior of the RF stage all affect the transmitted signal.
A Class AB stage can also amplify CW. The choice is therefore an engineering trade-off involving efficiency, linearity, design complexity, and the intended transmitter architecture.
Amplifier Bias and RF Power Output
Bias does not directly determine RF output power by itself. Output power depends on the supply voltage, device characteristics, load impedance, drive level, circuit topology, efficiency, and thermal limitations as well as the bias condition.
Increasing bias current does not automatically produce more usable RF power. In some amplifiers, excessive bias simply increases idle dissipation and heat without providing a corresponding increase in useful output.
This is a common misconception when adjusting RF power amplifiers. The objective of bias adjustment is to establish the correct operating point specified by the amplifier designer, not to maximize idle current.
Amplifier Bias and Efficiency
There is an unavoidable relationship between linearity and efficiency in traditional RF amplifier design.
A highly linear amplifier generally operates its active devices in a region where they can reproduce the waveform accurately. That requires the device to spend more time conducting and usually produces more heat.
A nonlinear amplifier can operate much more efficiently by allowing the active device to conduct for only part of the waveform. The disadvantage is distortion, which makes such operation unsuitable for signals whose information depends on amplitude.
This is why Class AB is such an important compromise for amateur radio linear amplifiers. It provides enough linearity for amplitude-varying modes while avoiding the very poor efficiency associated with Class A.
Amplifier Bias and Heat
Heat is one ofIf an amplifier becomes excessively hot at idle, stop operating it and investigate the cause. Check the bias against the manufacturer’s specified conditions before operating the amplifier again. the clearest indicators of an incorrectly biased or overloaded amplifier.
If the quiescent current is higher than the design specification, the active device dissipates additional power even when there is no RF input. As temperature rises, the device characteristics can change, potentially causing additional current and further heating if the circuit lacks adequate thermal compensation.
This feedback process is commonly associated with thermal runaway. Proper bias circuitry, thermal sensing, emitter or source resistors, heat sinking, and protection circuits can help prevent it.
If an amplifier becomes excessively hot at idle, do not simply increase the cooling or operate it harder. Investigate the cause and check the bias against the manufacturer’s specified conditions.
Why RF Amplifier Bias Can Change With Temperature
Semiconductor characteristics are temperature dependent. As an RF transistor or MOSFET heats, its electrical characteristics can change.
A good bias network is therefore designed to compensate for these changes sufficiently to maintain a stable operating point over the expected temperature range.
This is particularly important in high-power RF amplifiers because the device may dissipate significant heat during operation. A bias point that appears correct when the amplifier is cold may not remain correct after the amplifier reaches operating temperature.
For that reason, some service procedures specify whether bias should be checked cold, warm, or after a particular warm-up period. The manufacturer’s procedure should always be followed.
How Amplifier Bias Is Adjusted
The correct procedure for adjusting amplifier bias depends entirely on the amplifier design.
A transistor RF amplifier may use a bias potentiometer, fixed resistor network, regulated bias supply, active bias controller, or temperature-compensated circuit. A tube amplifier may use a fixed or adjustable negative grid-bias supply or another bias arrangement.
A typical service procedure may involve measuring quiescent collector, drain, or plate current and adjusting the bias circuit until the specified value is reached. However, this is not a universal procedure, and the test point, meter connection, operating state, and acceptable value must come from the amplifier’s service documentation.
Never assume that a bias adjustment potentiometer can safely be turned while the amplifier is operating. Some RF amplifiers contain lethal voltages, substantial stored energy, or high RF currents.

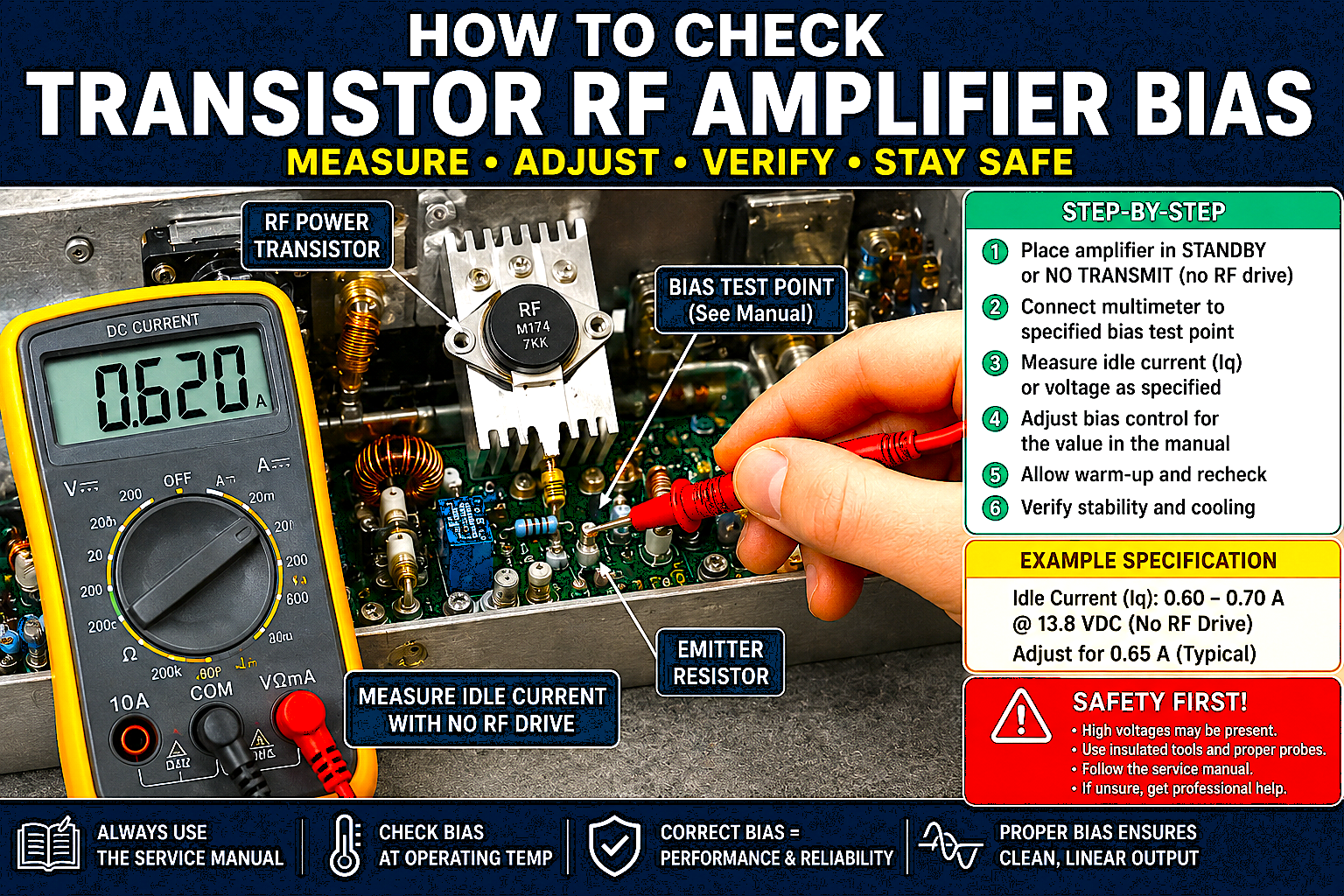

How to Check Transistor RF Amplifier Bias
When the service manual calls for a quiescent-current measurement, place the amplifier in the specified standby or no-drive condition and measure the required current or voltage according to the manufacturer’s procedure.
Depending on the amplifier design, you may measure the supply current directly, measure voltage across an emitter or source resistor, or use a dedicated test point.
The measurement method matters. Measuring total amplifier supply current is not necessarily equivalent to measuring the current through one RF device because driver stages, control circuits, cooling fans, relays, and other circuitry may also consume current.
This is why a generic “set the bias to X amps” instruction is unsafe and potentially inaccurate without knowing the exact amplifier circuit.
Adjusting Bias in a Tube RF Amplifier
Tube amplifier bias adjustment requires considerably more caution because high-voltage supplies can remain dangerous after the amplifier has been turned off.
A tube amplifier may contain hundreds or even thousands of volts, depending on its design. Filter capacitors can retain dangerous charge, and RF output networks can contain substantial stored energy.
Use the manufacturer’s service manual and the correct test equipment. If the amplifier requires internal access and you lack the training to work around high-voltage RF equipment, have a qualified technician perform the adjustment.
Do not use a generic internet procedure for a specific tube amplifier when the manufacturer’s documentation is available.
What Happens If Amplifier Bias Is Too Low?
If you bias a linear RF amplifier below its intended operating point, the active device may not conduct enough during the portions of the waveform needed for linear operation. This can increase distortion and reduce signal quality.
The result can include increased crossover distortion, reduced linearity, increased intermodulation products, and unwanted spectral energy.
In an SSB transmitter, this can produce a signal that sounds distorted and may occupy more bandwidth than intended. A signal that appears to have adequate power on a wattmeter can still be electrically poor if the amplifier is producing significant distortion.
What Happens If Amplifier Bias Is Too High?
Excessive bias causes the active device to conduct more current at idle than intended. This increases DC power dissipation and heat.
If the condition is severe enough, the device may exceed its safe operating temperature or electrical limits. Excessive heat can shorten component life and, depending on the circuit, contribute to thermal instability.
Increasing bias is therefore not a legitimate method of obtaining more amplifier power unless the manufacturer’s design specifically calls for a different operating point.
What Is Idle Current in an RF Amplifier?
Idle current is the current that flows through the amplifier’s active device or stage when no RF signal is present.
A Class AB RF amplifier normally draws some idle current because its devices remain slightly biased into conduction. This helps reduce the crossover region and improves linearity.
The correct idle current varies dramatically between amplifier designs. It may be specified per transistor, per tube, per amplifier module, or for the complete stage. Always determine which measurement the manufacturer is specifying before comparing a measured value with a published number.
Amplifier Bias and IMD
Intermodulation distortion, commonly abbreviated IMD, is especially important in SSB RF amplification.
When nonlinear devices process signals containing multiple frequency components, new frequency components can be generated. In a transmitter, these unwanted products can extend beyond the intended signal bandwidth.
Incorrect bias can contribute to poor linearity and increased intermodulation distortion. However, bias is only one factor. Drive level, device matching, load impedance, supply voltage, temperature, circuit layout, feedback, and output-network design can all influence IMD.
A clean-looking RF power reading therefore does not prove that an amplifier is operating linearly.
Amplifier Bias and Signal Distortion
The purpose of bias in a linear RF amplifier is not simply to make the transistor “turn on.” It establishes the conditions under which the device can reproduce the required waveform without unacceptable distortion.
This is why bias becomes especially important with SSB and AM. Both modes contain amplitude information that must survive amplification.
FM and CW have different requirements. Because these modes do not rely on continuously varying RF amplitude to carry information, nonlinear, high-efficiency RF stages can work well when the transmitter design supports them.
Amplifier Bias and Harmonics
Nonlinear amplifier operation can generate harmonics. Class C operation is a clear example because the active device conducts for only part of the RF cycle, producing a nonsinusoidal current waveform.
A tuned output circuit can recover the desired fundamental RF component while reducing harmonic energy. Additional filtering may be required to meet the applicable spectral requirements.
This is one reason an RF amplifier cannot be evaluated solely by measuring the fundamental output power. Spectral purity matters just as much.
Amplifier Bias and FCC Compliance
For amateur radio operators in the United States, proper amplifier operation is also a regulatory concern. An amplifier that is poorly biased or overdriven can generate unwanted emissions outside the intended signal bandwidth.
The Federal Communications Commission requires amateur stations to meet applicable emission and technical requirements. Maintaining clean RF output is therefore part of responsible station operation.
A high-power amplifier should be operated within its design limits, properly loaded, properly cooled, and configured for the mode being transmitted.
Common Amplifier Bias Problems
Several symptoms can indicate a bias-related problem:
High idle current: The amplifier may be drawing excessive current with no RF drive, indicating incorrect bias, a failed bias component, a damaged active device, or another circuit problem.
Excessive heat at idle: Excessive quiescent dissipation can cause the amplifier to become hot even when it is not producing RF output.
Distorted SSB audio: Incorrect bias can contribute to nonlinear operation and increased distortion.
Excessive bandwidth or splatter: Nonlinear operation can generate intermodulation products outside the intended signal.
Unequal device currents: In a multi-device amplifier, significantly different current readings can indicate device mismatch, bias-network problems, or a damaged component.
Bias drift with temperature: Significant changes after warm-up can indicate a problem with temperature compensation or the bias circuit.
These symptoms do not prove that bias is the cause. They indicate that the amplifier requires proper troubleshooting rather than random adjustment.
How to Test Amplifier Bias Safely
The safest approach is to begin with the amplifier’s service manual. Identify the exact bias test point, expected reading, operating condition, and adjustment procedure before connecting test equipment.
Use a properly rated multimeter and probes for the circuit being tested. For RF power amplifiers, also consider the possibility of high voltage, high current, stored energy, and RF burns.
Never assume that an amplifier is safe simply because the front-panel power switch is off. Tube amplifiers in particular may retain dangerous voltage in their power-supply capacitors.
If the required measurement involves exposed high-voltage circuitry and you do not have the training and equipment to work safely around it, the correct solution is professional service rather than experimentation.
Amplifier Bias Compared With Drive Level
Bias and RF drive are two different things.
Bias establishes the device’s operating point before the RF signal is applied.
Drive is the RF signal applied to the amplifier input.
Increasing drive does not correct incorrect bias. Similarly, increasing bias does not compensate for insufficient or excessive drive.
A properly designed amplifier requires both to remain within their specified ranges. Excessive drive can overdrive a linear amplifier even when its bias is perfectly adjusted.
Amplifier Bias Compared With Loading and Tuning
Bias is also different from amplifier loading and tuning.
Bias establishes the active device’s operating condition. Loading and tuning establish the relationship between the RF output stage and its load, including the impedance transformation and resonant conditions required by the circuit.
In a tube amplifier with a pi-network, for example, tuning and loading adjustments are part of matching the RF output stage to the antenna system. They do not replace proper tube bias.
Understanding these distinctions helps prevent one of the most common mistakes in RF amplifier troubleshooting: changing several adjustments at once without knowing which parameter is actually causing the problem.
Why Proper Bias Matters in Ham Radio
For amateur radio operators, amplifier bias connects directly to several practical station concerns.
It affects how efficiently the amplifier converts DC power into RF. It influences heat production and component stress. Bios affects the linearity required for SSB and AM. It can contribute to intermodulation distortion and unwanted emissions when improperly set.
Most importantly, correct bias allows the amplifier to operate as its designer intended.
An RF power amplifier should therefore be treated as a complete engineered system rather than a collection of adjustable controls. Bias, drive, loading, tuning, cooling, supply voltage, and the antenna load all have to remain within the design limits.
Amplifier Bias Explained: Key Takeawayss
Amplifier bias establishes the active device’s quiescent operating point.
The correct bias depends on the specific device and amplifier design rather than a universal voltage or current.
Class A, B, AB, and C represent different conduction-angle and linearity/efficiency relationships.
The Class AB is widely used for linear RF amplification because it provides a practical compromise between linearity and efficiency.
Class C can provide high efficiency for appropriate RF applications such as FM and CW but is unsuitable for normal linear SSB amplification.
Too little bias can increase distortion, while excessive bias can increase idle dissipation, heat, and device stress.
Quiescent current should be checked according to the manufacturer’s specified procedure rather than a generic value found online.
RF amplifiers can contain dangerous voltages and stored energy, so internal bias adjustments should only be performed with appropriate knowledge, equipment, and service documentation.
Frequently Asked Questions About Amplifier Bias
What is amplifier bias?
Amplifier bias is the DC voltage or current used to establish the operating point of an active device before an input signal is applied. In RF amplifiers, that operating point helps determine conduction angle, linearity, efficiency, and idle current.
Why does an RF amplifier need bias?
Bias establishes the conditions under which the transistor, MOSFET, or vacuum tube operates. In a linear RF amplifier, the correct bias allows the device to reproduce the signal with acceptable linearity while maintaining the intended efficiency.
What is quiescent current?
Quiescent current is the current flowing through an amplifier’s active device when there is no input signal. It is an important indicator of the bias condition in many transistor and RF power amplifier designs.
What happens if an RF amplifier has too much bias?
Excessive bias increases idle current and power dissipation. This can cause unnecessary heat, reduce efficiency, stress components, and potentially contribute to thermal problems.
What happens if RF amplifier bias is too low?
Bias that is too low can cause a linear amplifier to operate too close to cutoff, increasing distortion and intermodulation products. In an SSB transmitter, this can result in poor audio quality and excessive transmitted bandwidth.
What bias class is best for SSB?
Class AB is commonly used for SSB linear amplification because it provides a good compromise between linearity and efficiency. Class A can provide excellent linearity but with lower efficiency, while Class C is unsuitable for normal SSB amplification because of its nonlinear operation.
Can Class C be used for FM?
Class C works well in FM RF power stages because FM carries information through frequency variation, not changes in carrier amplitude. Its high efficiency makes it attractive for suitable RF transmitter designs.
Can Class C be used for CW?
Class C works well in appropriate CW RF stages because CW keys the RF carrier rather than varying its amplitude continuously, as SSB does. The complete transmitter design, filtering, and keying characteristics still determine the final signal quality.
Is amplifier bias the same as amplifier gain?
No. Bias establishes the device’s operating point, while gain describes how much the amplifier increases the signal. Bias can influence gain and linearity, but the two concepts are not interchangeable.
Does increasing bias increase RF output power?
Not necessarily. Increasing bias primarily changes the device’s operating condition and idle current. Excessive bias can increase heat without producing a useful increase in RF output.
How do I adjust amplifier bias?
Follow the manufacturer’s service procedure for the exact amplifier. The correct test point, operating condition, measurement method, and target value vary between designs. Do not use a generic bias value as a substitute for the manufacturer’s specification.
Is amplifier bias dangerous to adjust?
It can be. High-power RF amplifiers, particularly vacuum-tube amplifiers, can contain lethal voltages and stored electrical energy. Internal adjustments should only be performed by someone qualified to work safely on the specific equipment.
Final Thoughts on Amplifier Bias Explained
Amplifier Bias Explained the fundamental concepts behind RF power amplifier operation. It establishes the operating point of the active device and helps determine whether the stage behaves as a highly linear amplifier, a more efficient linear stage, or a nonlinear high-efficiency RF stage.
For amateur radio, understanding bias makes it easier to understand why Class AB is commonly associated with linear SSB amplification, why Class C can be useful for FM and CW, why excessive idle current produces heat, and why an amplifier that produces plenty of RF power can still be operating incorrectly.
The most important practical rule is simple: do not adjust amplifier bias by guesswork. The correct bias is determined by the amplifier’s circuit design and manufacturer specifications. Measure the correct parameter at the correct test point, use the specified operating conditions, and consider temperature and safety before making any adjustment.
A properly biased amplifier is not simply an amplifier that produces power. It is an amplifier operating within the conditions its designer intended, with the necessary balance of linearity, efficiency, thermal stability, reliability, and spectral cleanliness for the mode being transmitted.
Please consider Donating to help support this channel
