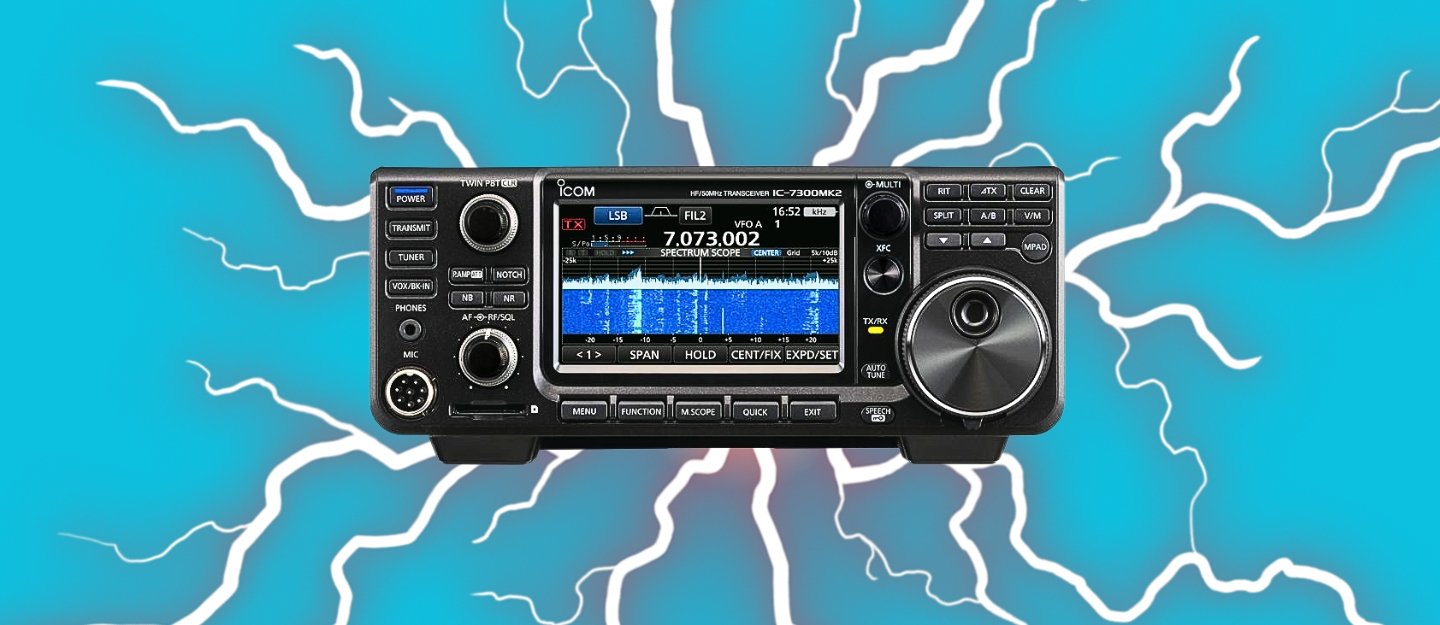

The Icom IC-7300MKII represents the next step in Icom’s highly successful SDR-based transceiver line. When the original IC-7300 appeared, it set a new standard by offering direct sampling technology, a responsive color touchscreen, and powerful DSP features in an affordable package.
The MKII now refines that foundation and adds enhanced performance, improved filtering, and more advanced processing, making it an even stronger choice for amateur operators who demand reliability and innovation.
How the IC-7300MKII Builds on the Original
The first IC-7300 gained immediate popularity because it gave operators access to spectrum scope capabilities and SDR technology at a price point previously unseen. However, the MKII improves on nearly every aspect of the original design.
The new version includes expanded memory storage, a more responsive waterfall display, and refined DSP algorithms that produce cleaner audio and sharper filtering. Moreover, it improves dynamic range, which helps during crowded contest conditions or when operating in areas with strong local signals. The result is a more polished and capable transceiver that addresses the demands of modern amateur radio.
Frequency Coverage and Power Output
The IC-7300MKII covers a full range of HF bands along with 6 meters, making it a versatile all-around rig. Frequency coverage includes:
- Receive: 0.030–74.800 MHz
- Transmit: 1.8–54.0 MHz (amateur bands only)
Output power remains consistent at a solid 100 watts on HF and 6 meters, while AM operation provides 25 watts carrier output. Because of its robust final amplifier design, the MKII can maintain stable output over long operating sessions, whether you are working voice, CW, or digital modes.
Spectrum Scope and Waterfall Display
One of the standout features of the IC-7300MKII is its improved 4.3-inch color touchscreen display. The original IC-7300 introduced many operators to real-time panadapter capability, but the MKII refines this with faster refresh rates and higher clarity.
As a result, signals appear more distinct, and band activity is easier to track. Additionally, the waterfall shows even the weakest signals, which helps operators identify DX opportunities or monitor noise levels across the band.
Direct Sampling SDR Technology
At the heart of the radio lies direct RF sampling. Unlike traditional superheterodyne receivers, the IC-7300MKII converts RF directly into digital data, which provides cleaner demodulation and more accurate filtering.
The updated MKII design uses a higher precision ADC and improved FPGA processing, which enhances weak-signal performance and reduces overload from strong signals. Because of these refinements, the radio handles crowded band conditions more effectively and delivers superior audio clarity.
Advanced DSP and Filtering
The MKII brings major improvements in filtering and signal handling. The digital signal processing features include:
- Variable passband filters for precise audio shaping
- Digital noise reduction with improved algorithms for cleaner audio
- Automatic notch filter to eliminate carriers or tones
- Noise blanker to suppress ignition or line noise
Since these tools work in the digital domain, they respond faster and offer greater flexibility than traditional analog filters. Furthermore, operators can customize their filtering for CW, voice, or digital work, which provides maximum control in any situation.
Audio and Speech Processing
Audio quality often defines a station, and the IC-7300MKII delivers on both transmit and receive. The built-in speech processor ensures punchy and articulate audio, even under contest conditions.
Additionally, the MKII refines receive audio by adding better speaker response and improved DSP-driven noise suppression. Operators will notice less fatigue during long operating sessions, and contacts will hear a stronger, more consistent signal on the air.
Digital Mode Integration
Digital operation continues to grow, and the IC-7300MKII handles it with ease. A built-in USB interface allows operators to connect directly to a computer for FT8, PSK31, RTTY, and other digital modes.
Because no external sound card interface is needed, setup becomes simple and reliable. The MKII also supports CI-V control, enabling logging programs, remote operation, and software integration with minimal effort.
Memory and Band Stacking Registers
The IC-7300MKII expands on the memory system of the original. With additional memory channels, users can store favorite operating frequencies, nets, and repeaters. Band stacking registers let operators save and quickly recall three different operating frequencies per band.
As a result, switching between CW, voice, and digital spots on the same band becomes fast and efficient.
Build Quality and Reliability
Icom designed the MKII to handle continuous use in demanding environments. The solid chassis includes an effective heat dissipation system, which ensures consistent operation even during long key-down digital sessions or high-duty contesting.
Its compact form factor allows operators to use it as a main shack rig or take it into the field for portable operations. Therefore, the radio adapts easily to different styles of amateur radio.
Full Specifications of the Icom IC-7300MKII
- Frequency coverage (receive): 0.030–74.800 MHz
- Frequency coverage (transmit): 1.8–54.0 MHz (amateur bands only)
- Output power: 100 watts HF/6m (25 watts AM carrier)
- Modes: SSB, CW, RTTY, AM, FM, digital modes via USB
- Display: 4.3-inch color touchscreen with real-time spectrum scope and waterfall
- Architecture: Direct sampling SDR with advanced FPGA
- Filters: Variable passband, auto notch, noise blanker, noise reduction
- Audio: Built-in speech processor, improved DSP audio shaping
- Connectivity: USB for CAT and digital modes, CI-V remote control
- Memory: Expanded channel storage and enhanced band stacking registers
- Dimensions: Compact desktop size with integrated cooling system
Why the Icom IC-7300MKII Is Better
The Icom IC-7300MKIII improves upon the original in several critical areas. First, it offers sharper and faster display performance, which makes the panadapter more useful during contests and DXing.
Second, it enhances DSP performance, providing cleaner audio and better filtering. Third, it delivers improved dynamic range, which allows the radio to perform more effectively in high-signal-density environments.
Finally, it adds more memory and refined software tools, making it easier to operate across multiple bands and modes. Because of these upgrades, the MKII stands as a worthy successor to the legendary IC-7300.
Final Thoughts
The Icom IC-7300MKII carries forward the innovative design of its predecessor while adding meaningful improvements that today’s operators will appreciate. It provides strong performance on HF and 6 meters, advanced digital integration, and a refined user experience.
While the original IC-7300 remains an outstanding transceiver, the MKII raises the bar and ensures that Icom maintains its place at the forefront of amateur radio technology. For any operator seeking a modern, reliable, and versatile SDR-based transceiver, the IC-7300MKII is one of the most compelling choices available today
