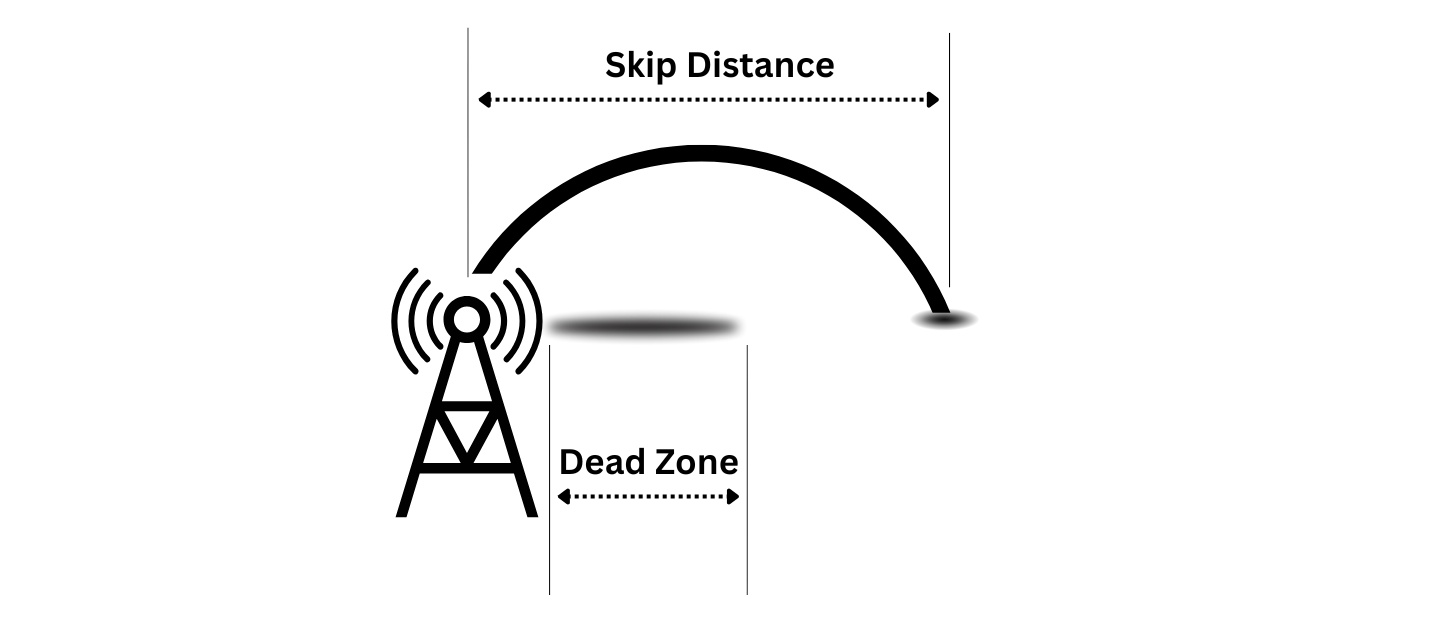

Learning skip distance and dead zones is essential for DX contacts. Skip distance is the minimum distance between a transmitting station and the point where a skywave signal returns to Earth after bouncing off the ionosphere. When a radio wave leaves your antenna, it travels upward, reflects off the ionosphere, and then comes back down. The point where it first lands is called the skip point.
Everything between your station and that point becomes an area where the signal cannot be received, known as a dead zone. Consequently, stations too close to you will not hear your signal, while more distant stations may come in strong and clear.
Factors That Affect Skip Distance
Skip distance constantly changes because multiple factors influence it. Frequency plays a key role, as higher frequencies create longer skip distances, while lower frequencies result in shorter ones. Additionally, the angle at which your antenna radiates energy determines where the signal lands.
A low-angle radiation pattern sends signals farther away, creating a wider dead zone. In contrast, a high-angle radiation pattern produces shorter skip distances, which helps you reach nearby stations.
The Role of Time and Solar Conditions
Time of day and solar activity also have a major impact on skip distance. During daylight hours, the ionosphere absorbs lower frequencies, increasing skip distances and expanding dead zones.
At night, the ionosphere becomes more reflective, which shortens skip distances and improves local coverage. Because solar activity directly affects ionospheric behavior, skip patterns can change dramatically during solar flares or geomagnetic storms.
Understanding Dead Zones
Dead zones are the areas between your station and the skip point where no signal is heard. This can be a major issue during emergency communications or local nets when you need to reach stations nearby.
Fortunately, you can reduce dead zones by using antennas designed for near-vertical incidence skywave (NVIS) propagation. NVIS antennas radiate signals almost straight up, filling the coverage gap between local and distant stations.
Practical Solutions for Closing Dead Zones
If you experience a dead zone, you can take several steps to improve coverage. For example, on the 40-meter band, you might have a dead zone extending 200 miles. Switching to a lower frequency like 80 meters or using an NVIS antenna can close the gap.
Adjusting antenna height or orientation also changes the takeoff angle, which moves the skip point and alters the dead zone. Therefore, experimenting with different configurations helps you adapt to varying conditions.
Skip Distance in Contesting and DXing
Understanding skip distance is especially valuable for contesting and DXing. During contests, knowing the current skip range helps you target stations at the right distance to maximize your score. DX operators use predictable skip patterns to reach rare stations worldwide. Because skip distances often shorten during gray line propagation at sunrise and sunset, these times are ideal for making long-distance contacts.
Gaining Control Over Skip Distance
Although skip distance and dead zones may seem complicated at first, practice and observation make them manageable. By tracking frequency behavior, monitoring solar data, and noting time-of-day effects, you can predict where your signal will land. Consequently, you gain a significant advantage during everyday operation and special events.
Conclusion
Mastering skip distance and understanding dead zones will make you a more effective and efficient operator. By applying these concepts, you minimize frustration, improve contact opportunities, and adapt to changing conditions. As a result, your station performs at its best, and your skills as an amateur radio operator continue to grow.
