In ham radio, the automatic gain control(AGC) monitors signal strength that can fluctuate due to atmospheric conditions, interference, or station variability. To maintain consistent audio levels, most modern receivers use Automatic Gain Control. Understanding how AGC works and how to optimize its settings can significantly improve your operating experience.
What Is Automatic Gain Control?
AGC is a circuit in a radio receiver that automatically adjusts the gain of the receiver’s amplifier to keep the output signal at a stable level. When a strong signal is received, AGC reduces the gain to prevent audio distortion. Conversely, when a weak signal comes in, it increases the gain to make the signal more audio.
How AGC Works
AGC monitors the strength of incoming signals and adjusts the receiver’s gain accordingly. It operates through these key steps
- Signal Detection: The AGC circuit detects variations in signal strength.
- Voltage Adjustment: It generates a control voltage that adjusts the receiver’s gain.
- Gain Regulation: The radio modifies its amplification to maintain a steady output level.
Many transceivers allow users to set AGC response times, typically categorized as fast, slow, and medium. Each setting affects how quickly AGC reacts to changes in signal strength.
Improvements in Modern Radios
Modern radios have significantly improved AGC functionality. Advanced digital signal processing (DSP) now allows for more precise AGC adjustments, reducing audio artifacts and improving clarity.
Additionally, software-defined radios (SDRs) provide customizable AGC settings, enabling operators to fine-tune responses based on band conditions. These advancements result in smoother, more effective gain control, enhancing the overall listening experience.
Adjustability in SDR Radios
One of the key advantages of SDR radios is the highly adjustable AGC settings. Operators can modify AGC parameters such as attack time, decay time, and threshold levels through software interfaces.
This flexibility allows users to tailor AGC behavior to specific operating conditions, optimizing reception for different modes and environments. With real-time visualization of AGC performance, SDR users can make precise adjustments that are not always possible with traditional hardware-based AGC systems.
When and Why to Use AGC
AGC is essential for maintaining clear, distortion-free communication in various conditions. Here’s when and why you should use it:
- During DXing: When working weak signals, AGC helps prevent stronger nearby stations from overwhelming your receiver.
- In Contesting or Pile-Ups: It keeps signal levels balanced, allowing operators to focus on communication rather than constant manual adjustments.

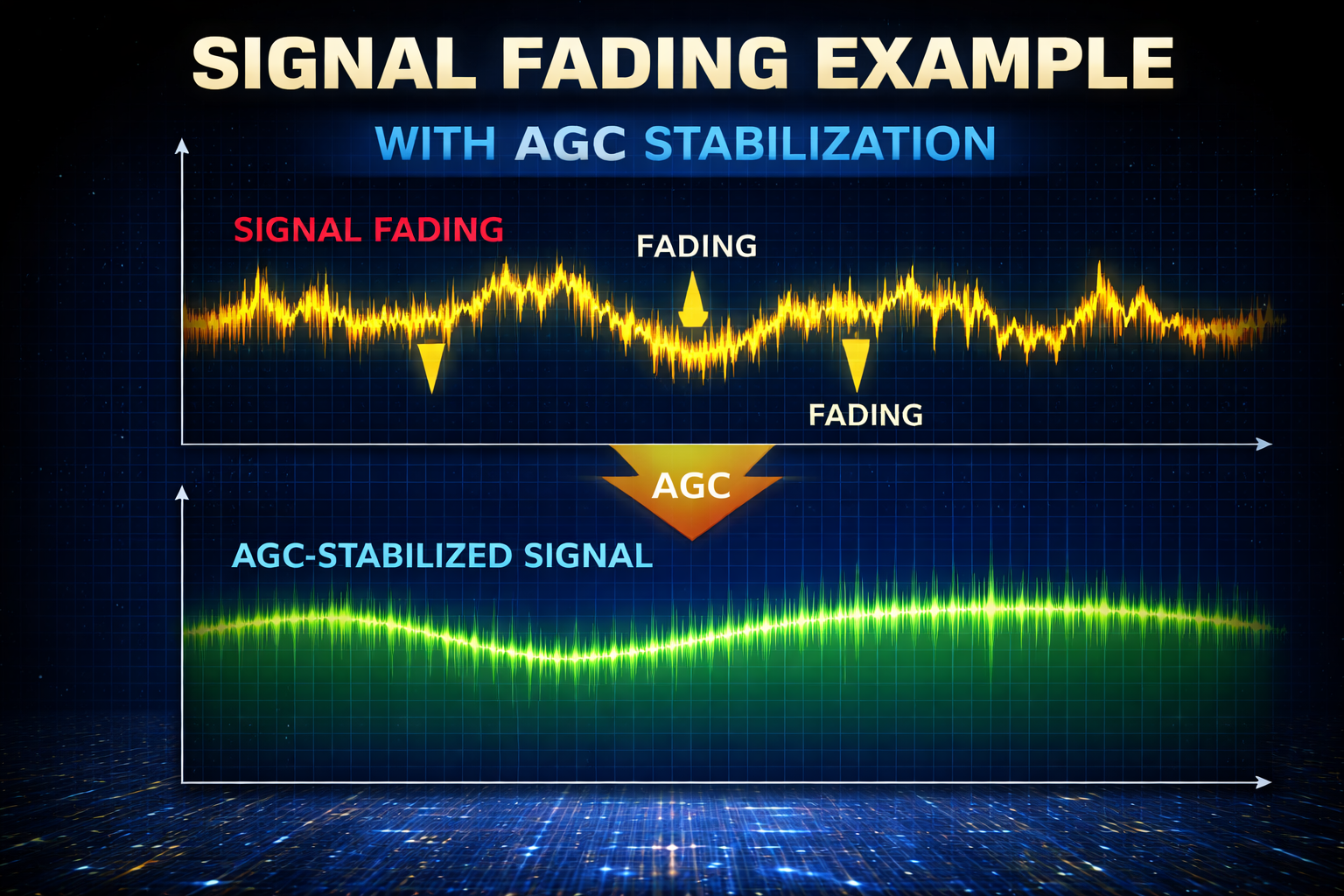

- When Handling Fading Signals: AGC compensates for QSB (signal fading), improving readability.
Tips for Using AGC Effectively
To get the most from AGC, consider these best practices:

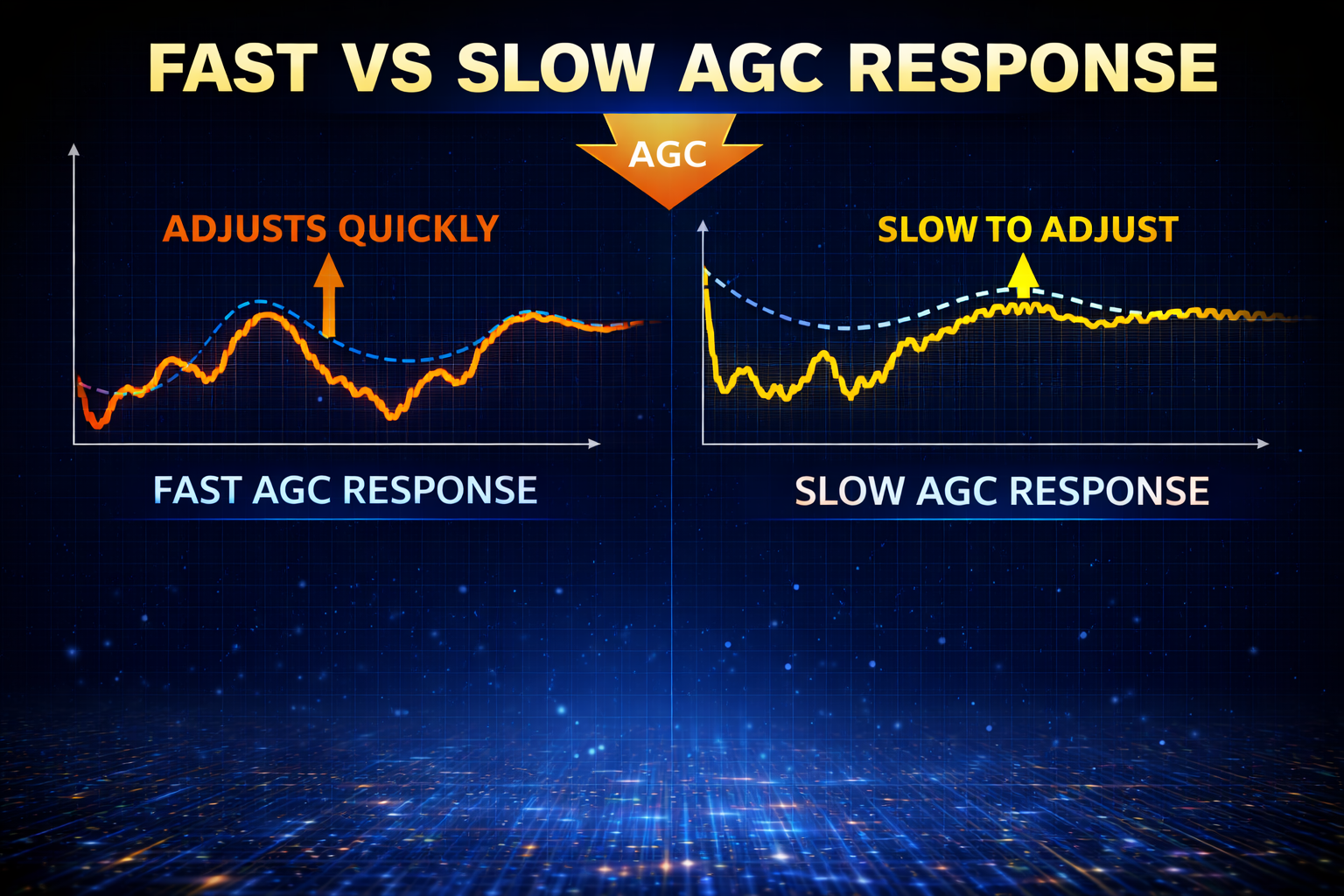

- Choose the Right AGC Speed:
- Fast AGC is useful for CW and digital modes where signal strength changes rapidly.
- Slow AGC works best for SSB voice communication to avoid sudden audio level jumps.
- Medium AGC offers a balance and is suitable for general use.
- Adjust AGC Thresholds if your radio allows it, to prevent unnecessary gain reduction on moderately strong signals.
- Use Manual Gain When Needed: If AGC causes undesirable audio fluctuations, manually adjusting RF gain can sometimes offer better results.
- Monitor AGC Behavior: Some radios display AGC activity, which helps in fine-tuning your settings for optimal performance.
Conclusion
Automatic Gain Control is an indispensable feature in ham radio, ensuring smooth and clear audio in ever-changing conditions. By understanding its function and fine-tuning its settings, operators can enhance their overall radio experience.
