Ham radio equipment relies on many different types of connectors, each designed with a specific purpose in mind. From antenna connections to power distribution, these connectors ensure reliable communication and stable operation.
Because each connector type offers its own advantages, understanding them allows you to set up and maintain your station more effectively. In fact, choosing the right connector can improve performance, prevent damage, and make your station easier to use.
PL-259 and SO-239 Connectors

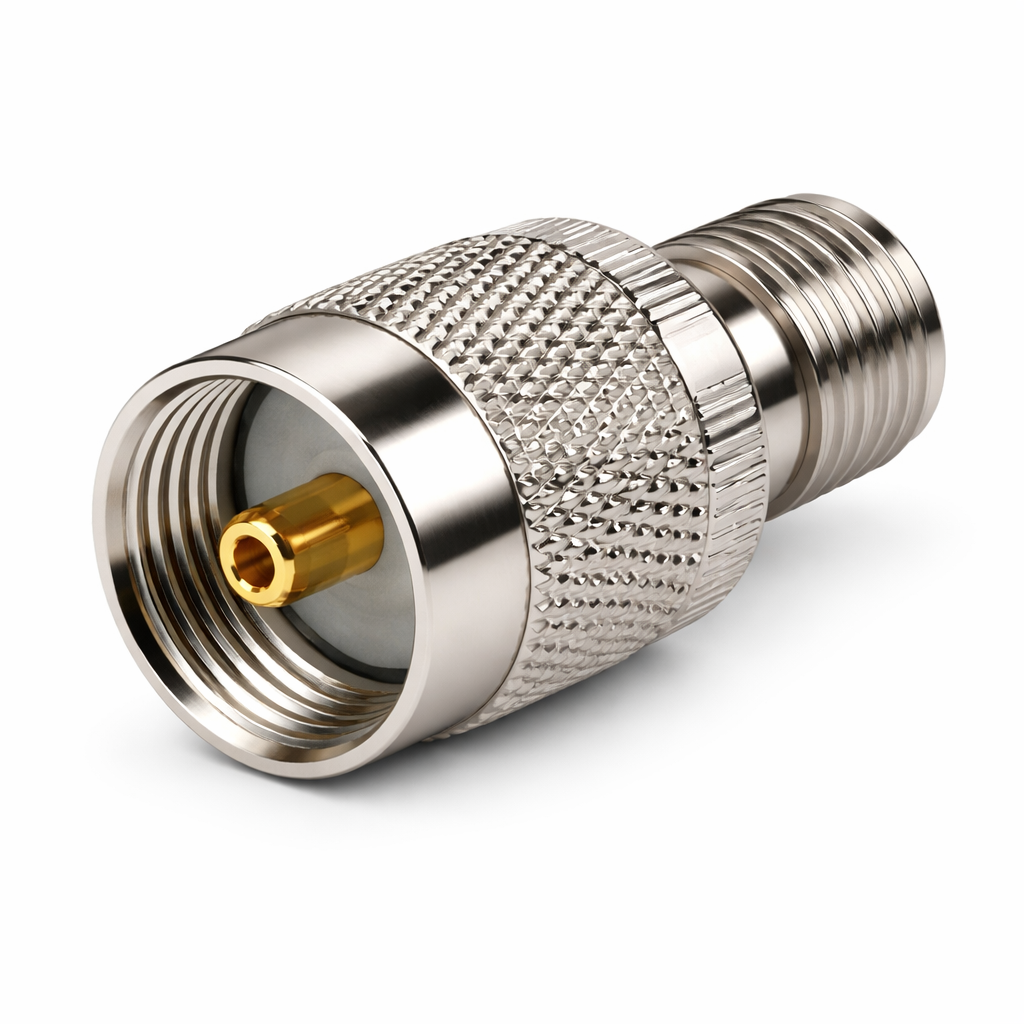

One of the most common connectors in ham radio is the PL-259, often paired with its female counterpart, the SO-239. The PL-259 is a threaded coaxial connector that handles RF signals efficiently in the HF and VHF range. Operators use this connector to attach coaxial cable to radios, amplifiers, and antenna tuners.
Since it is rugged and easy to install, it has remained popular for decades. However, while it performs well for many applications, it does not have the best impedance control at higher frequencies. Nevertheless, for most HF and VHF uses, it works reliably.
BNC Connectors

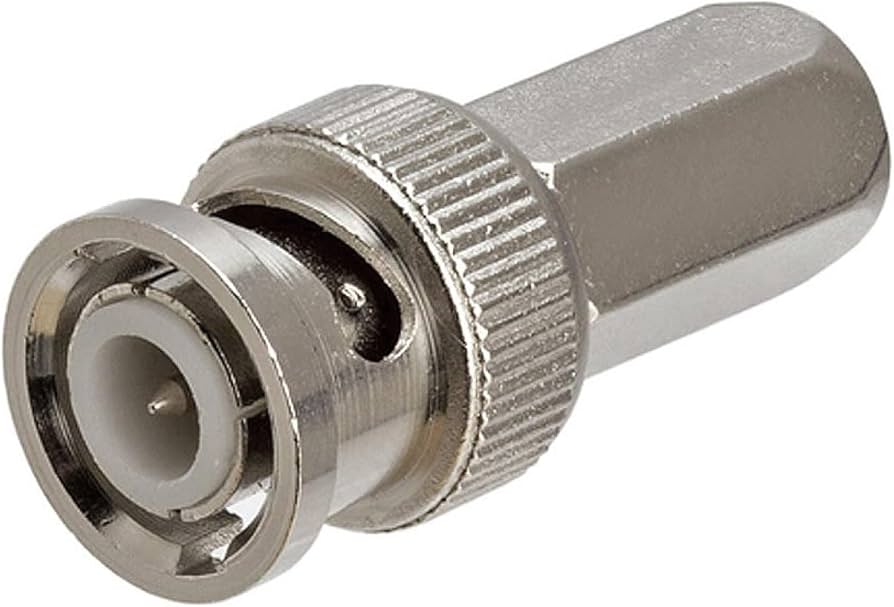

The BNC connector is another widely used option, especially on test equipment and portable radios. It features a simple twist-lock mechanism that allows quick connections and disconnections. Because of its design, it works well when you need to swap antennas or test different cables rapidly.
Moreover, the BNC maintains good impedance control at higher frequencies, making it better for UHF applications than the PL-259. For field work and portable operations, many operators prefer BNC connectors due to their ease of use.
N-Type Connectors
The N-type connector is designed for excellent performance across a broad frequency range. It provides secure threaded connections and maintains impedance stability up to microwave frequencies. As a result, it is ideal for applications where minimal loss is critical, such as repeater stations, microwave links, or high-frequency antennas.
Additionally, the N connector is weather-resistant, so it works well for outdoor installations where durability matters. While it is bulkier than other connectors, its performance advantages often outweigh the added size.
SMA Connectors
SMA connectors are compact threaded connectors often found on modern handheld transceivers, small mobile radios, and accessories. Because they are small, they allow manufacturers to design lightweight and compact radios.
They also handle higher frequencies efficiently, making them excellent for UHF and above. However, SMA connectors are not as rugged as PL-259 or N connectors, so frequent connecting and disconnecting can wear them out. Even so, their size and performance make them popular in handheld gear.
Powerpole Connectors
Anderson Powerpole connectors are standard in many ham radio setups for DC power distribution. These connectors feature a modular, genderless design that allows quick and reliable connections between radios, power supplies, and batteries.
Because they handle high current and maintain low resistance, they are excellent for both base and portable operations. Furthermore, Powerpoles reduce the risk of reverse polarity connections, which can damage sensitive equipment.
Over time, they have become a universal standard among hams for power connections, especially in emergency communications and portable setups.
USB and USB-C Connectors
Modern radios increasingly include USB connectors for programming and data transfer. A standard USB-A or USB-B connector often links the radio to a computer for firmware updates, memory programming, or digital modes. Because this eliminates the need for proprietary cables, it simplifies operation.
USB-C is now appearing on newer radios, offering faster data transfer and charging capabilities. With USB-C, you can recharge batteries directly from common chargers, power banks, or solar panels. Since the connector is reversible, it is easier to use than older USB types. Additionally, USB-C supports more power delivery, which benefits radios with built-in rechargeable batteries. This type of connector highlights how modern radios integrate with everyday technology.
DC Barrel Connectors
Many radios, especially mobile transceivers and small HF units, use DC barrel connectors for direct power connections. These connectors are simple and compact, allowing manufacturers to supply radios with standard power cords. However, they vary in size and polarity, so it is important to match the connector correctly. Despite this, they remain common for smaller devices where Powerpoles are not included by default.
Microphone and Accessory Connectors
Microphones and accessories often use modular connectors such as RJ-45, 3.5mm audio jacks, or multi-pin connectors. An RJ-45 connector resembles those used in Ethernet networking and allows microphones or control heads to connect to radios. Multi-pin connectors may handle not only microphone audio but also push-to-talk, speaker output, and control signals. Because these connectors support multiple functions, they are essential for customizing radio operation.
RCA Connectors
RCA connectors often appear on older radios and audio interfaces. Hams use them for audio in and out, especially when connecting external amplifiers, tuners, or sound cards. Because RCA connectors are simple and widely available, they remain popular for station integration. However, they are not as rugged as other connectors, so they are more common in shack setups than in portable use.
3.5mm Audio Jacks
The 3.5mm jack is a universal connector for audio devices, and ham radios frequently include them for speaker output, microphone input, and data connections. Because they are small and lightweight, they work well for portable radios, headsets, and accessories.
In addition, 3.5mm jacks are easy to interface with computers and sound cards for digital modes. Nevertheless, they can wear out if used heavily, so many operators prefer adapters or external interfaces for long-term use.
1/4″ Audio Jacks
Larger than 3.5mm connectors, the 1/4″ jack is found on higher-quality audio gear and some older radios. They provide stronger connections for microphones, headphones, or foot switches. Because of their durability, they are favored in professional audio setups and contest stations. While less common on newer radios, they still appear in equipment designed for rugged use.
RS-232 Serial Ports
RS-232 connectors were once the standard for computer-to-radio communication. Many radios included a 9-pin DB-9 connector for CAT (computer-aided transceiver) control, rig programming, or data exchange. Even though USB has largely replaced it, RS-232 remains important for older radios and legacy software. In fact, many hams still keep USB-to-serial adapters handy to support older rigs.
HDMI Connectors

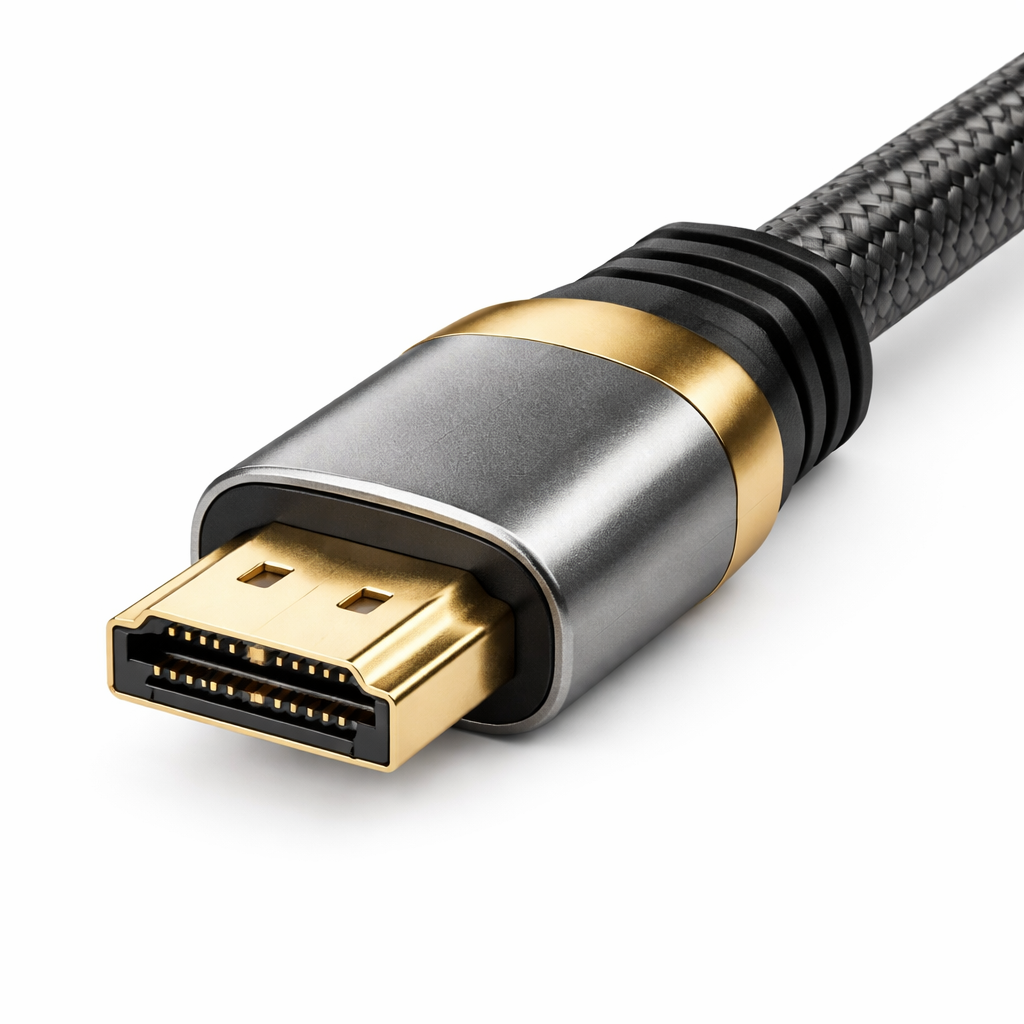

Some modern SDR transceivers and high-end radios feature HDMI outputs to connect external displays. Because SDR radios often provide spectrum scope and waterfall views, HDMI allows you to use a large screen for better visibility. This enhances operating by letting you monitor activity across wide frequency ranges. Although not yet universal, HDMI represents how ham gear continues to adopt mainstream technology.
RJ-45 Connectors
The RJ-45 connector, familiar from Ethernet cables, is widely used in ham radio — but often not for networking. Instead, many radios use RJ-45 connectors for microphones and control heads. Because it can carry multiple signals—such as audio, PTT, and control functions—RJ-45 offers a compact way to connect accessories. Some radios also use RJ-45 for digital control ports or linking multiple devices together.
Ethernet Ports
Ethernet has become common in modern radios that support remote operation. By connecting directly to a network, radios can be controlled over the internet or a local LAN. For example, many SDR transceivers allow streaming of I/Q data and full control through Ethernet. Since it provides reliable, high-speed data transfer, Ethernet makes remote ham radio operation possible without extra hardware.
Accessory Ports
Accessory connectors vary between manufacturers but are essential for expanding functionality. These multi-pin connectors allow integration with external tuners, amplifiers, TNCs, or sound card interfaces. Because they can carry audio, keying signals, and control lines, they simplify station wiring. Each manufacturer designs its own pinouts, so referencing the manual is always necessary. Nevertheless, these ports make radios highly versatile.
Other Connectors
Beyond the common ones, ham radios may include a variety of other connectors:
- DIN Connectors: Multi-pin round connectors used for audio, keying, and control.
- CI-V or CAT Ports: Proprietary control interfaces on many Icom, Yaesu, and Kenwood radios.
- Coaxial DC Connectors: Used for low-voltage power to accessories.
- Fiber Optic: Occasionally found in high-end setups for clean audio transfer.
Why So Many Different Ham Radio Connectors?
Ham radios use different connectors because each one serves a unique purpose. RF connectors must maintain impedance and minimize signal loss, while power connectors need to handle high current safely.
At the same time, modern digital functions require USB or data connectors to link radios with computers or mobile devices. Because of these specialized roles, no single connector type can cover every application.
Advantages of Variety in Connectors
Having multiple connector types provides flexibility and ensures optimal performance in each area. For instance, PL-259 connectors remain rugged for HF, N connectors deliver precision for UHF and microwave, and SMA connectors save space on handhelds.
Meanwhile, Power-poles simplify DC wiring and reduce mistakes, while USB-C modernizes charging and data handling. Even though it might seem inconvenient to deal with many connectors, each one brings advantages that make radios more reliable and easier to integrate into complex setups.
Final Thoughts On Ham Radio Connectors
Ham Radio Connectors are the unsung heroes of ham radio stations. Without them, signals, power, and data could not flow reliably between equipment. By understanding each type from PL-259 for coax, a Power-pole for DC power, or a USB-C port for charging you gain the ability to build a stronger, safer, and more efficient station.
Moreover, as radios continue to evolve, newer connectors like USB-C will continue to bridge amateur radio with everyday technology, ensuring the hobby stays modern and practical.
