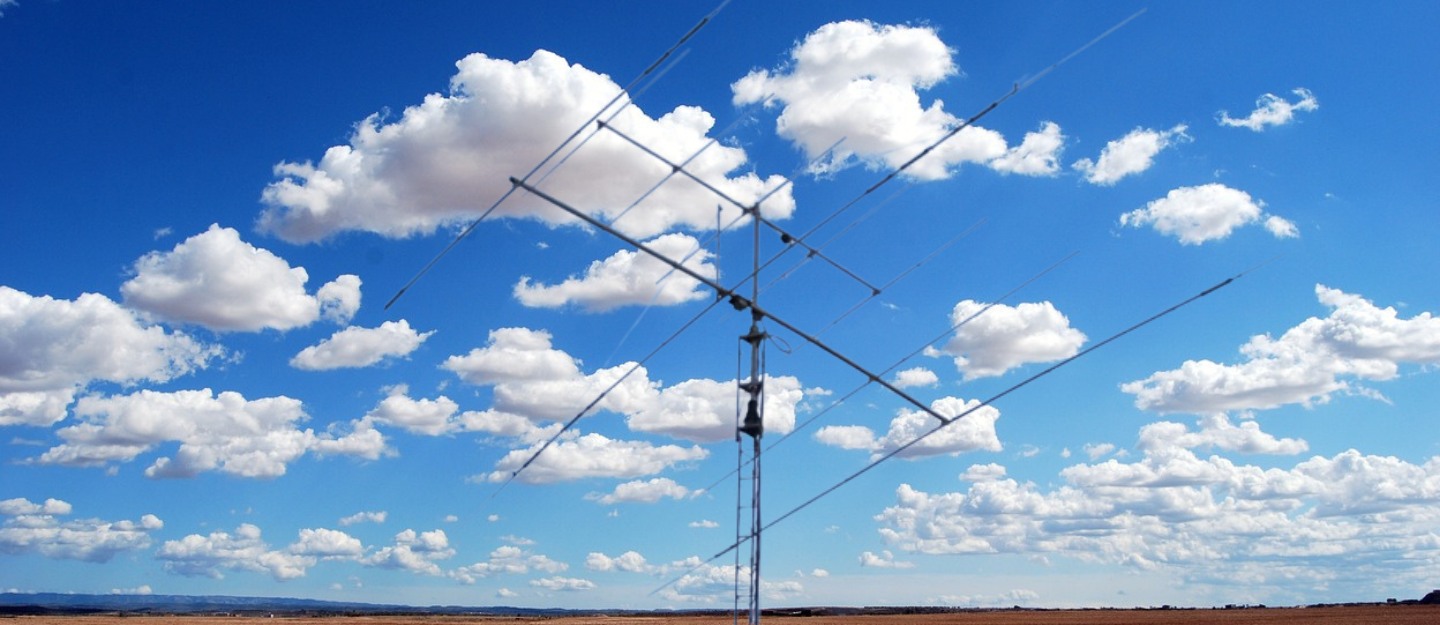

Antenna tower grounding is essential for protecting your equipment and property from lightning strikes and electrical surges. Proper grounding not only ensures safety but also improves the performance of your antenna system by minimizing RFI interference. Here’s a comprehensive guide on grounding an antenna tower, including the materials needed and the steps to follow.
Materials You’ll Need
- Grounding rods: Copper or copper-clad steel, typically 8–10 feet long.
- Grounding wire: Solid copper wire, at least #6 AWG (or thicker, depending on local regulations).
- Clamps: UL-listed ground rod clamps for securing wires to the rods.
- Trench digging tools: Shovel, trenching tool, or mini excavator.
- Exothermic welding kit (optional): For permanent wire-to-rod connections.
- Grounding plate (optional): For areas with rocky or sandy soil.
Step 1: Plan the Grounding System
Start by determining the number and placement of ground rods. For most antenna towers, at least three rods spaced equally around the base provide adequate protection. Consult local codes to confirm specific grounding requirements in your area.
Step 2: Drive Ground Rods into the Soil
Position the first rod approximately 2 feet from the tower base. Use a sledgehammer or ground rod driver to drive the rod into the ground, leaving about 6 inches exposed for wire connection. Repeat this process for the remaining rods, spacing them 8–10 feet apart and forming a triangular configuration.
Step 3: Connect the Grounding Wire
Run a continuous length of solid copper wire from each leg of the tower base to each ground rod, use a ground rod for each leg of the tower.
Run an additional length of copper wire in a circle around the tower connecting it to each ground rod. Use clamps to secure the wire to the rods, ensuring a tight connection. If you opt for exothermic welding, follow the manufacturer’s instructions for a permanent bond.
Run a continuous length of solid copper wire from each leg of the tower base to each ground rod, use a ground rod for each leg of the tower. Run an additional length of copper wire in a circle around the tower connecting it to each ground rod. Use clamps to secure the wire to the rods, ensuring a tight connection. If you opt for exothermic welding, follow the manufacturer’s instructions for a permanent bond.
Step 4: Bury the Wire
Dig a trench about 8-24 inches deep to bury the grounding wire. This depth protects the wire from accidental damage and keeps it firmly in contact with the soil. Lay the wire in the trench, ensuring it runs straight to each ground rod without sharp bends.
Step 5: Bond the Tower Base
Connect the grounding wire directly to the tower base or the anchor bolts using a clamp. This step ensures that the tower itself is part of the grounding system and offers a direct path for electrical discharge.
Step 6: Test the Grounding System
After completing the installation, test the grounding system to verify its effectiveness. Use a ground resistance tester to ensure the resistance is less than 5 ohms, as recommended for lightning protection.
Tips for Better Grounding
- Use additional rods or a grounding plate if the soil has high resistivity (e.g., rocky or sandy areas).
- Avoid sharp bends in the grounding wire to reduce resistance and improve performance.
- Regularly inspect and maintain the grounding system to ensure continued reliability.
Conclusion
Tower grounding is different for station grounding, however, it is a straightforward but vital process. With the right materials, proper installation, and regular maintenance, you can protect your equipment, improve performance, and ensure safety. Following these steps guarantees a robust grounding system that meets both practical and regulatory standards.
