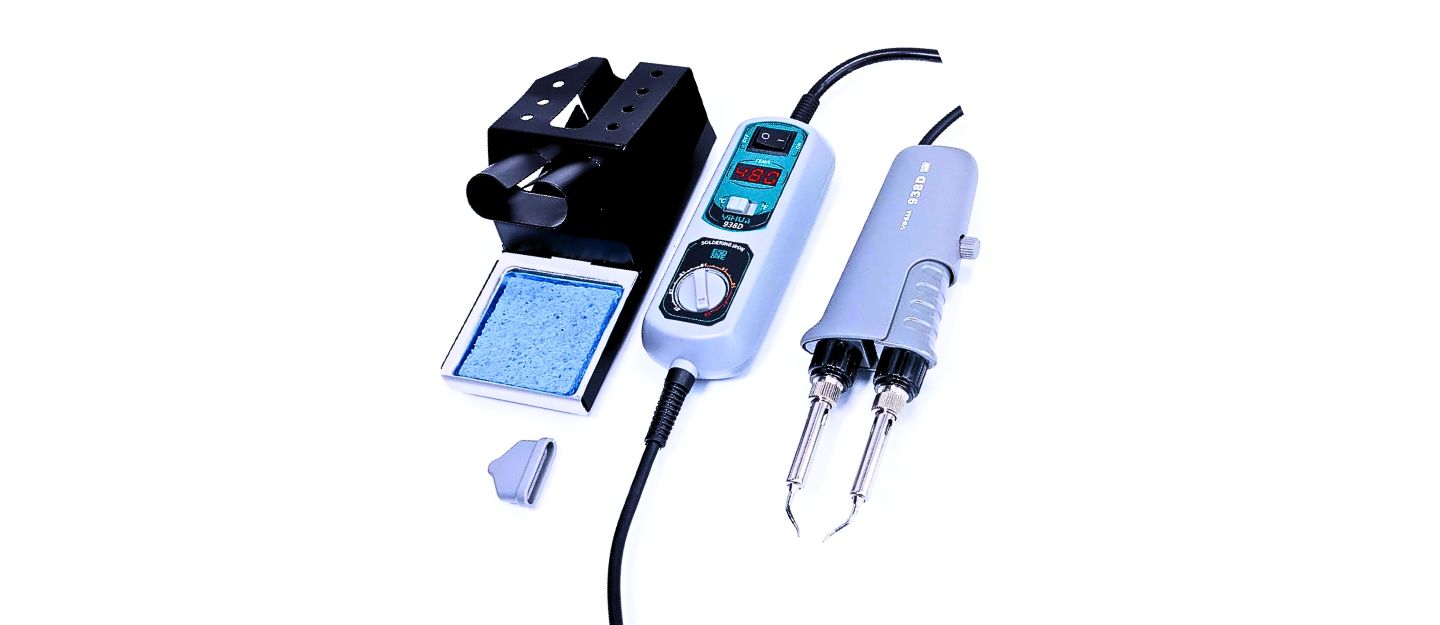

The 938D Portable Hot Tweezers are a high-power heated parallel design with programmable temperature control and PID technology. A sleep timer shuts the tool off if it is not used for ten minutes, while the Fahrenheit/Celsius temperature conversion function provides additional convenience when setting the operating temperature.
The 938D includes temperature compensation to help keep temperature fluctuations small and improve temperature stability. The parallel electric tweezer design is convenient for working with small electronic components, including surface-mount components, small chips, and resistors. Both sides of the tweezers heat equally, allowing heat to be applied to the component from both sides for easier removal.
The opening between the tweezer points can be adjusted to match the component being removed. The tips are also replaceable when they wear out, allowing the tool to remain useful for continued electronic repair and modification work. A thermostat controlled by a rotary knob and LED display lets you control the amount of heat and helps prevent damage from excessive temperature.
Want to learn more about the tools to improve your station or keep it running properly, check out our Tools.
When it is time to remove small electronic components, the 938D Portable Hot Tweezers are a useful tool for the job.
What Are the 938D Portable Hot Tweezers?
The 938D Portable Hot Tweezers are a heated parallel tweezer tool designed for removing small electronic components. The two heated sides of the tweezers provide heat directly to the component, making the tool particularly useful for surface-mount components, small chips, and resistors.
The 938D combines adjustable temperature control with PID technology, a Fahrenheit/Celsius conversion function, a ten-minute sleep timer, temperature compensation, and replaceable tips. The adjustable opening between the tweezer points also allows the tool to be positioned around components of different sizes.
938D Hot Tweezer Features
The 938D Portable Hot Tweezers include several features intended to make component removal easier and more controlled. Temperature adjustment is handled through a rotary control and LED display, while the heated parallel design allows both sides of the tweezers to apply heat to the component.
Key features of the 938D Portable Hot Tweezers include a high-power heated parallel tweezer design, programmable temperature control, PID temperature control technology, Fahrenheit/Celsius temperature conversion, a ten-minute sleep timer, temperature compensation, an LED temperature display, adjustable tweezer-point opening, replaceable tips, and heated tips on both sides.
938D Portable Hot Tweezers
I needed a tool to remove surface-mounted components for repairs and do mars modifications. I came across the heated tweezers and immediately bought them. When unboxing them, I thought I had made a mistake because they did not look like a professional tool.
The 938D heated up fast and held its temperature. Under heavy use, I had to bump up the temperature slightly, but the tool kept working. The tips cleaned off nicely, although they could have been smaller for some of the components I was working with. I also found that the tips could spin around if they were not tightened enough.
The thermostat knob turns easily and allows the temperature to be adjusted during use. The LED display makes it possible to monitor the temperature while working with small electronic components.
Using the 938D Portable Hot Tweezers
My experience with the 938D showed that the tool heats quickly and maintains its temperature during use. Under heavier use, I found that the temperature sometimes needed to be increased slightly, but the tool continued working.
The tips also cleaned up nicely after use. One limitation I noticed was that the tips could have been smaller for some of the components I was working with. I also found that the tips could rotate if they were not tightened sufficiently.
These observations are important when evaluating a tool because component removal involves more than simply reaching a selected temperature. The size and position of the tips, temperature stability, and ability to keep the tweezers properly positioned all affect how easily small components can be removed.
Working With Small Electronic Components
The parallel heated tweezer design is intended for work where both sides of a component need to receive heat at the same time. This makes the tool useful for removing surface-mount components, small chips, and resistors where conventional tweezers do not provide the same direct heating capability.
The adjustable opening allows the tweezer points to be positioned around the component being removed. This provides flexibility when working with components of different sizes and allows the operator to adjust the tips to the particular component being handled.
Because the tips are replaceable, the tool can continue to be used after the original tips eventually wear out. This is useful for anyone who expects to use heated tweezers repeatedly for electronic repair and modification work.
938D Temperature Control
Temperature control is one of the important features of the 938D Portable Hot Tweezers. The tool uses a rotary thermostat control and LED display, allowing the operator to adjust the heat rather than relying on a fixed temperature.
The 938D also incorporates PID technology and temperature compensation. These features are intended to reduce temperature fluctuations and improve temperature stability during operation.
The Fahrenheit/Celsius conversion function provides another convenience when setting and monitoring the operating temperature. The ten-minute sleep timer also shuts the tool off when it has not been used for that period.
Replaceable Tips on the 938D
The 938D uses replaceable tweezer tips, which is important for a tool intended for repeated electronic repair work. Tips can wear over time, and the ability to replace them allows the tool to remain usable rather than requiring replacement of the complete unit.
The opening between the tweezer points can also be adjusted, allowing the tool to accommodate different component sizes. Properly tightening the tips is important because I found that they could rotate if they were not tightened enough.
938D Hot Tweezer Tip Size and Adjustment
The ability to adjust the opening between the tweezer points is useful when working with different component sizes. The tips can be positioned to match the component being removed, allowing the heated surfaces to contact the component from both sides.
During my use of the 938D, I found that the supplied tips could have been smaller for some of the components I was working with. This is something to consider when using the tool for particularly small surface-mount components.
938D Portable Hot Tweezers for Electronic Repair
The 938D Portable Hot Tweezers are designed around a simple purpose: applying heat to small electronic components while allowing the component to be gripped with the tweezer tips. This makes the tool useful for repairs and modifications involving surface-mount components, small chips, and resistors.
The heated parallel design means that both sides of the component can receive heat at the same time. Combined with adjustable temperature control and adjustable tip spacing, this provides control over both the heat and physical positioning of the tool.
Who Should Consider the 938D Portable Hot Tweezers?
The 938D Portable Hot Tweezers are suited to electronic repair and modification work where small components need to be heated and removed. They are particularly useful for surface-mount components, small chips, and resistors where a heated tweezer design can make removal easier.
For someone working regularly with small electronic components, the combination of adjustable temperature control, heated parallel tips, adjustable tip spacing, and replaceable tips makes the 938D a practical tool to consider.
938D Portable Hot Tweezers: Final Assessment
The 938D Portable Hot Tweezers proved useful for the surface-mount component removal work I purchased them for. The tool heats quickly, maintains temperature during use, and provides adjustable temperature control through the thermostat and LED display.
The tips could be smaller for some applications, and they need to be tightened properly to prevent them from rotating. However, the heated parallel design, adjustable opening, temperature control, temperature compensation, and replaceable tips make the 938D a useful option for small electronic repair and modification work.
My experience with the tool also showed that it is important to properly adjust and tighten the tips before working. Once adjusted correctly, the heated parallel design makes it possible to apply heat to both sides of a small component while removing it.
Frequently Asked Questions
Are the 938D Portable Hot Tweezers Adjustable?
Yes. The opening between the tweezer points can be adjusted to match the component being removed. This allows the tool to be positioned around components of different sizes.
Do the 938D Hot Tweezers Have Temperature Control?
Yes. The 938D uses a rotary thermostat control and LED display for temperature adjustment. The temperature can be monitored while working, and the Fahrenheit/Celsius conversion function provides additional convenience.
Do the 938D Hot Tweezers Use PID Technology?
Yes. The 938D includes PID technology as part of its temperature-control system. The tool also includes temperature compensation intended to help minimize temperature fluctuations.
Can the Tips Be Replaced?
Yes. The tweezer tips are replaceable when they become worn. This allows the tool to continue being used without replacing the entire unit.
What Are 938D Hot Tweezers Used For?
The 938D Portable Hot Tweezers are designed for removing small electronic components, including surface-mount components, small chips, and resistors.
Do Both Sides of the Tweezers Heat?
Yes. The design heats both sides of the tweezers for component removal. The parallel arrangement allows heat to be applied to the component from both sides.
Do the 938D Hot Tweezers Have a Sleep Timer?
Yes. The 938D includes a ten-minute sleep timer that shuts the tool off when it has not been used for ten minutes.
Can the 938D Display Temperature in Fahrenheit and Celsius?
Yes. The 938D includes a Fahrenheit/Celsius temperature conversion function, allowing the temperature display to be used in either measurement system.
Are the 938D Tips Easy to Adjust?
The opening between the tweezer points can be adjusted to match the component being removed. During my use, I also found that the tips needed to be tightened properly because they could rotate if they were not tightened enough.
Final Thoughts on the 938D Portable Hot Tweezers
The 938D Portable Hot Tweezers are a useful addition to an electronics repair setup when small components need to be heated and removed. The heated parallel design, adjustable temperature control, replaceable tips, and adjustable opening provide several useful features for this type of work.
My experience with the 938D was positive overall. It heated quickly, held its temperature during use, and continued working under heavier use. The tips could have been smaller for some applications, and they needed to be tightened properly to prevent movement, but these were manageable limitations.
For repairing and modifying electronic equipment involving small components, the 938D Portable Hot Tweezers provide a practical way to combine heating and gripping in a single tool.
